CES-PJ19-W22F
产品特性
板载Intel® Celeron® J1900高性能低功耗四核处理器，主频最大可以达到2.0GHz
支持单通道DDR3L 1333 SO-DIMM内存插槽，内存容量最大可达8GB
支持双千兆网口
支持VGA/HDMI多扩展显示
内置1 x Mini-PCIe及1 x M.2 支持多种模块扩展
9~36V宽压设计，可锁附DC-IN接口
产品规格
系统 System
|
处理器 Processor |
Intel® Bay Trail Celeron® J1900 processor (2.00 GHz) |
|
内存 Memory |
1 x DDR3L 1333 MHz SO-DIMM Slot, up to 8GB |
|
图形 Graphics |
Intel® HD Graphics for Intel Atom® Processor Z3700 Series, dual display |
|
存储 Storage |
1 x mSATA/M.2 2242 SSD slot |
|
操作系统 OS |
Windows 7/8/10, Linux |
|
看门狗定时器 Watchdog Timer |
Programmable 255 levels timer interval, from 1~255 sec/min |

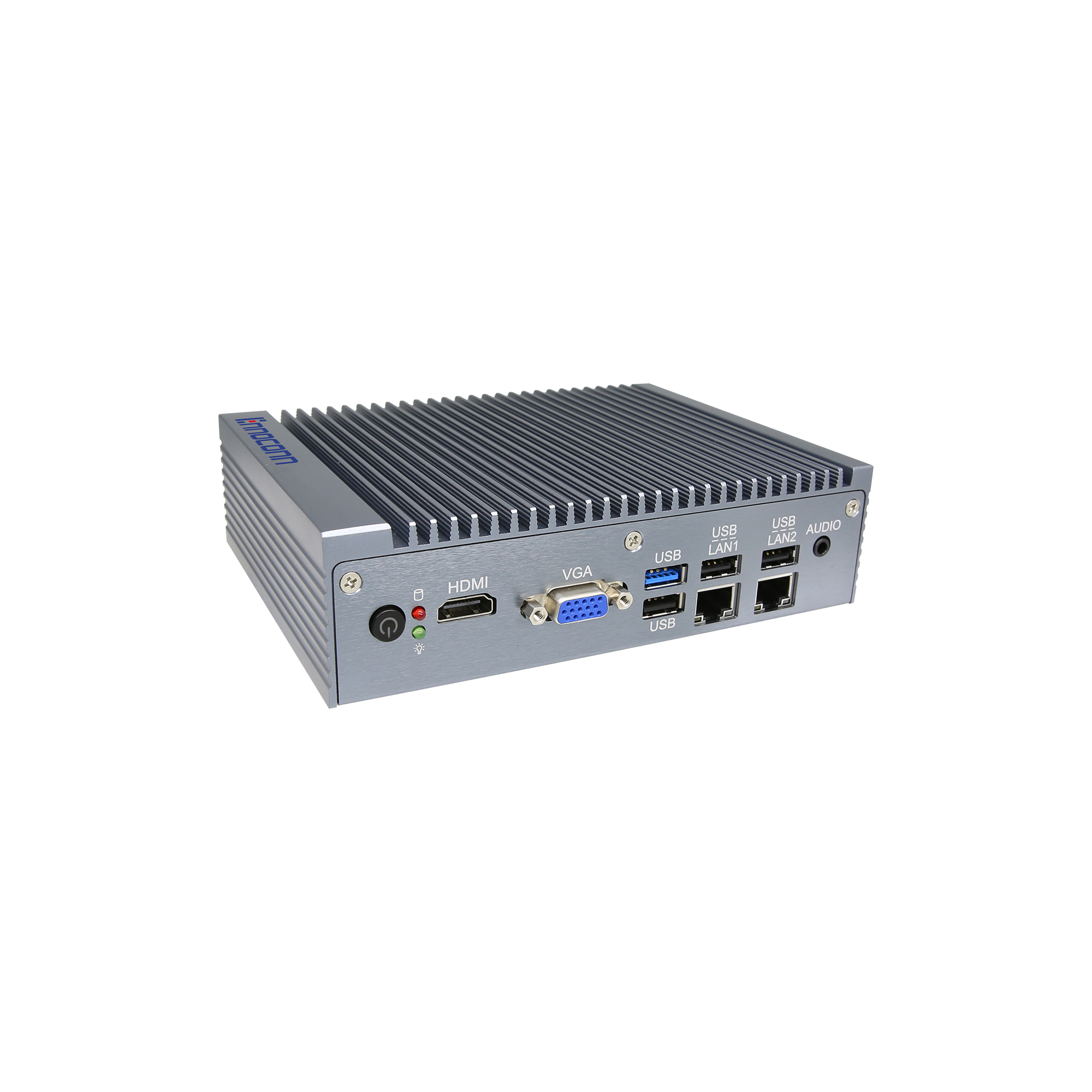

外部接口 External I/O
|
网口 Ethernet |
2 x RJ45 Intel® i211AT GbE (10/100/1000 Mbps) |
|
显示 Video |
1 x VGA: max resolution up to 2560 x 1600 1 x HDMI: max resolution up to 1920 x 1200 |
|
音频 Audio |
1 x Audio(Line-out&Mic-in 2 in 1) Realtek® ALC269 HD Audio codec |
|

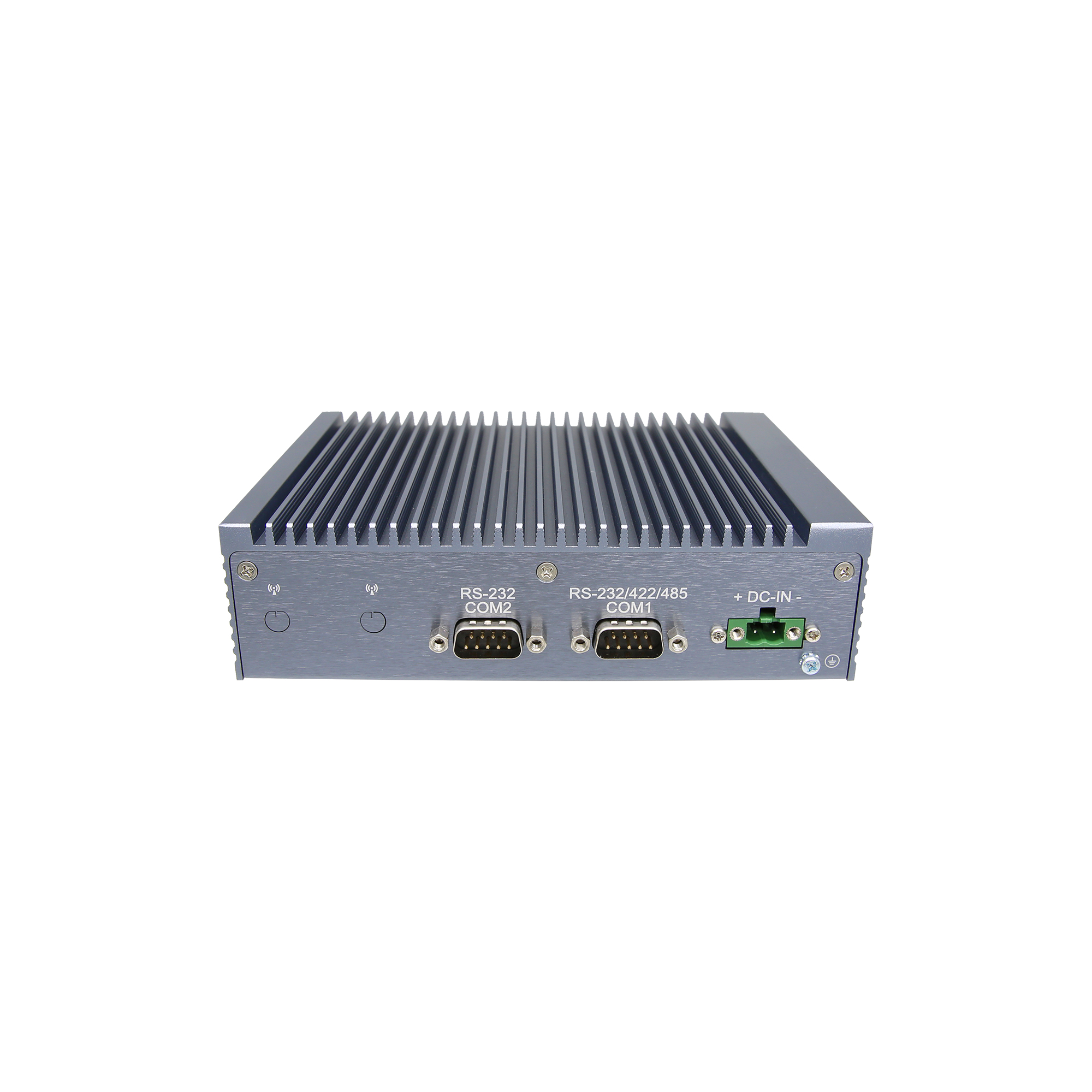

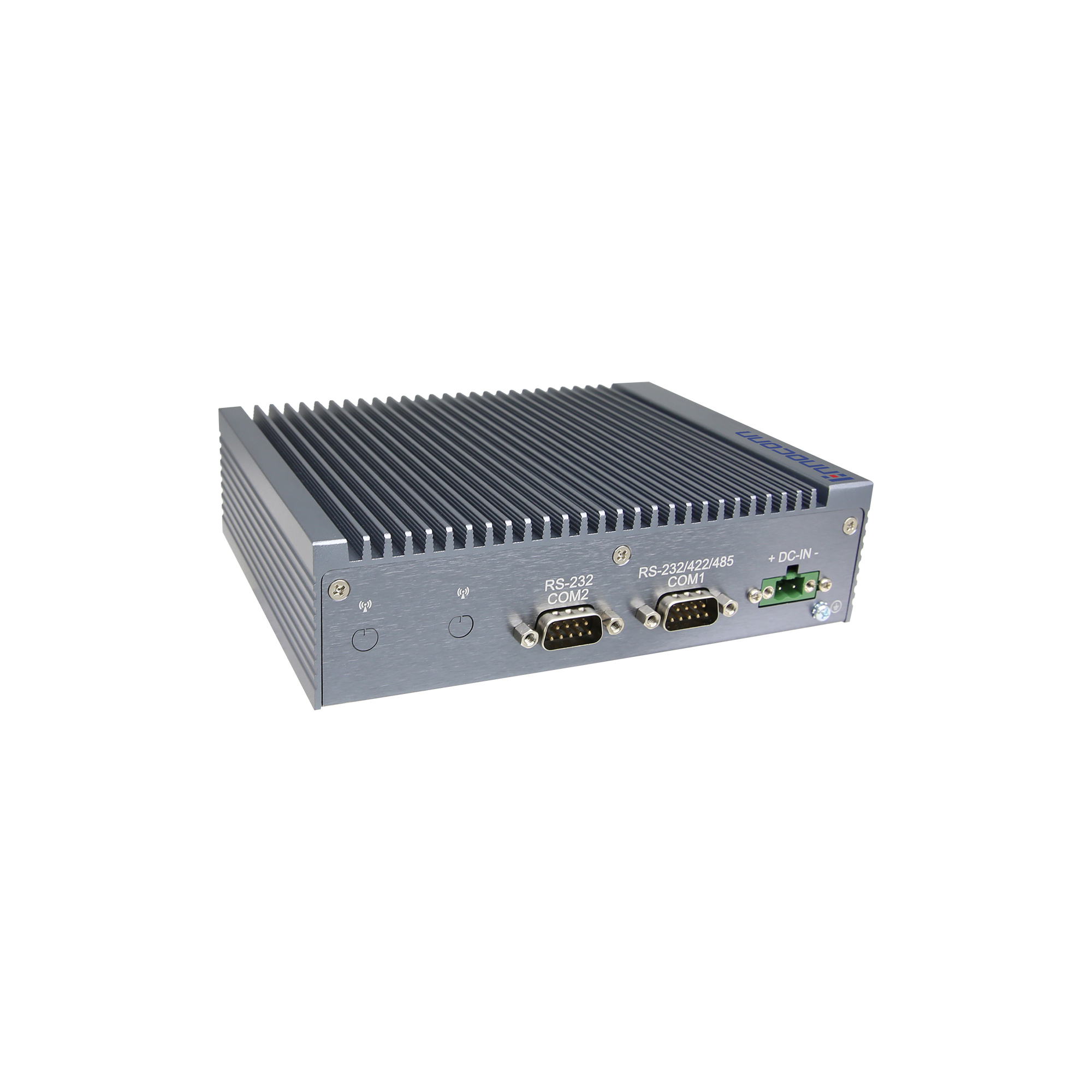

串口 COM |
1 x RS232/422/485 1 x RS232 |
|
USB |
3 x USB 2.0 (USB SR Pro supported) 1 x USB 3.0 (USB SR Pro supported) |
|
按钮 Button |
1 x Power button |
|
指示灯 LED |
1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) 1 x HDD LED (Red blink for Data read or write) |
内部接口 Internal I/O
|
扩展接口 Expansion |
1 x Mini-PCIe Slot (PCIe/SATA signal supported) |
|
SIM 卡 |
1 x SIM socket |
环境 Environmental
|
操作温度 OperatingTemp. |
-10℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD) |
|
存储温度 Storage Temp. |
-40℃ ~ 85℃ |
|
湿度Relative Humidity |
5% ~ 95%, 非凝结状态Non-condensing |
|
振动 Vibration |
SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation |
|
机械冲击 Shock |
Operation: 10G@11ms Non-operation: 30G@11ms |
|
电磁兼容 ESD |
Contact 6KV, Air 10KV |
电源 Power
|
电源输入 Power Input |
9~36V DC, 2-pin phoenix connector |
机构Mechanical
|
外观 Housing |
铝合金 Aluminum Alloy |
|
安装方式 Mounting |
Desk-Mount, (Wall-Mount, DIN-Rail(optional) VESA-mount (75 x 75mm,100 x 100mm optional) |
|
尺寸 Dimension |
165 x 125 x 45 mm |
|
重量 Weight |
0.8kg |
认证 Certification
|
安规认证 Safety Certification |
CCC |
