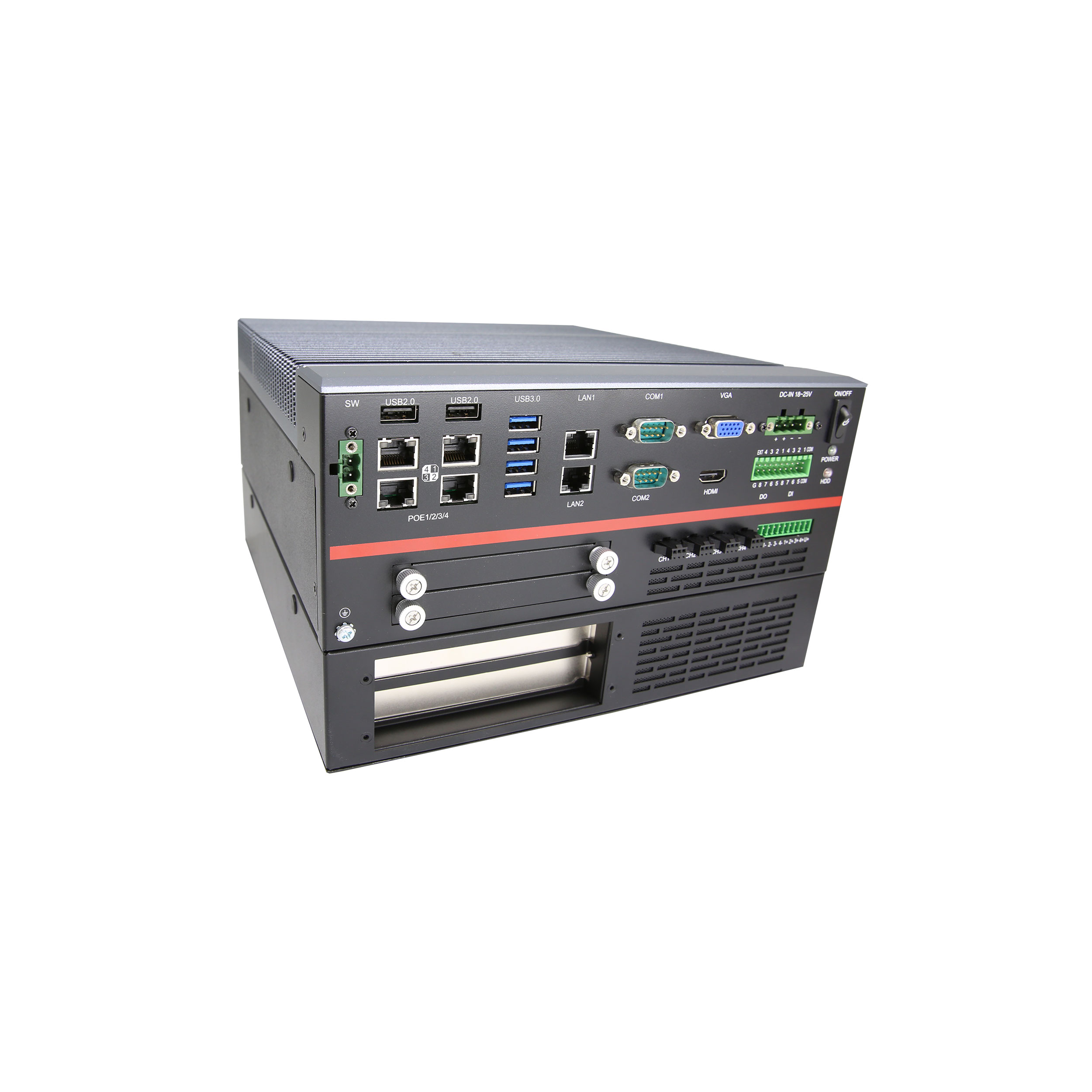

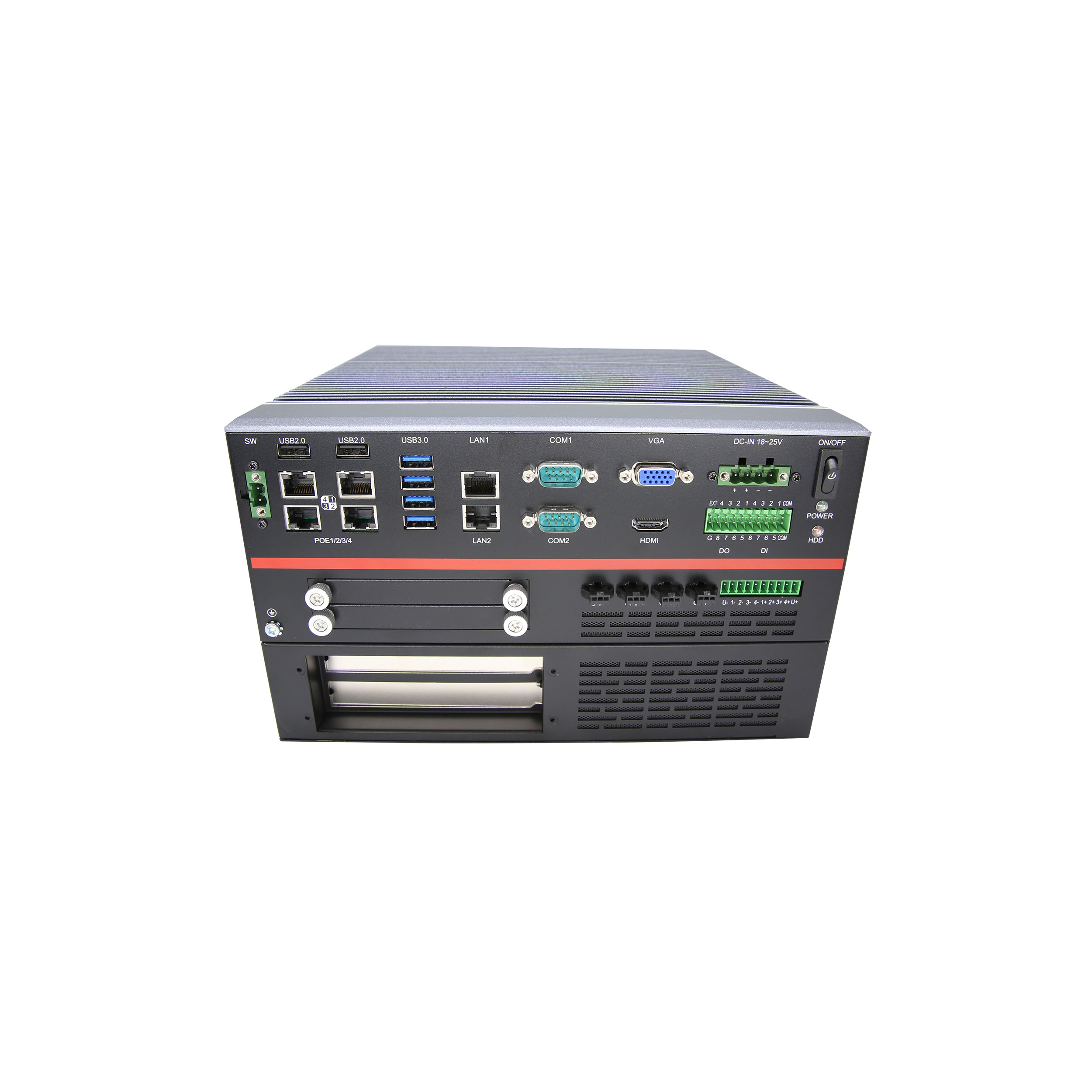

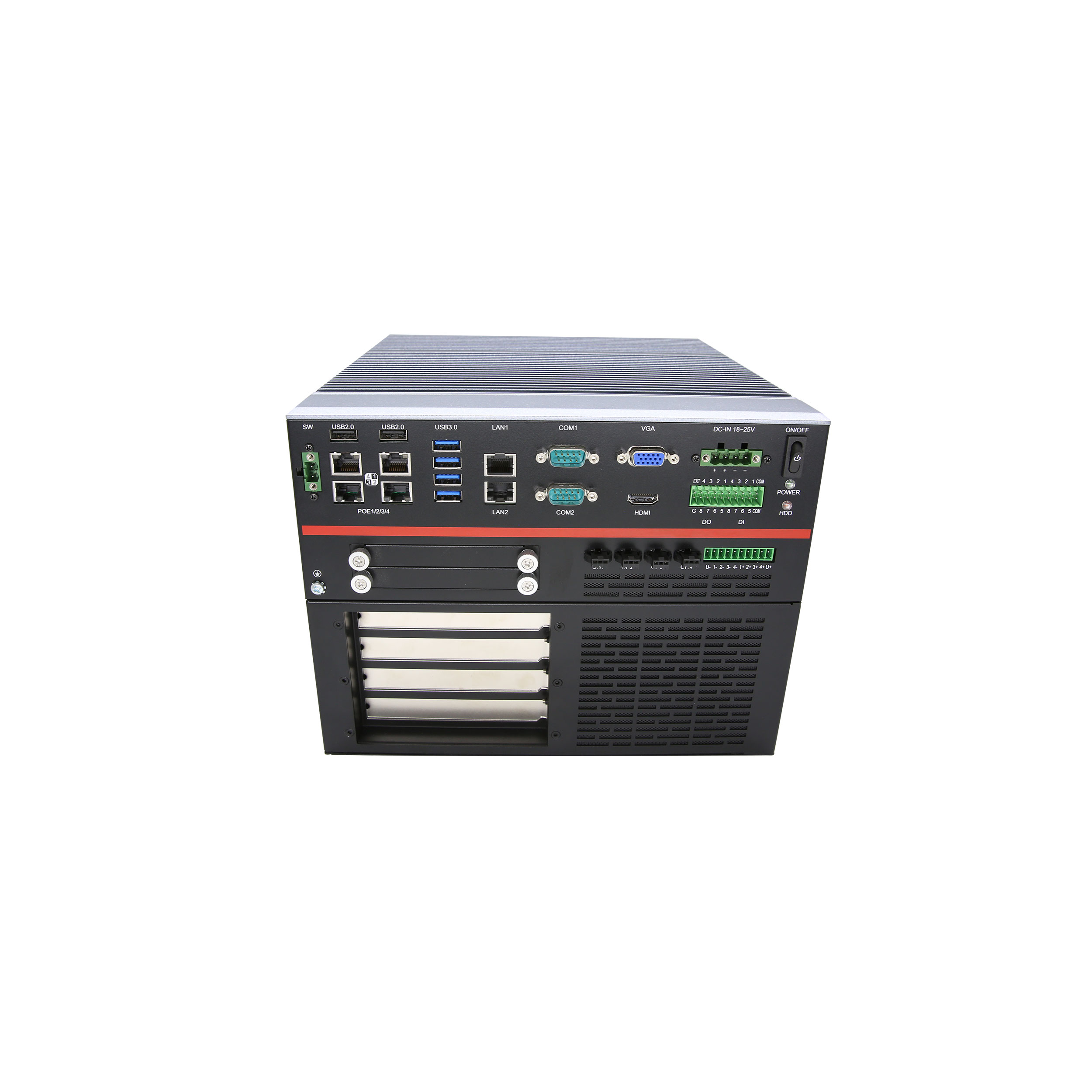

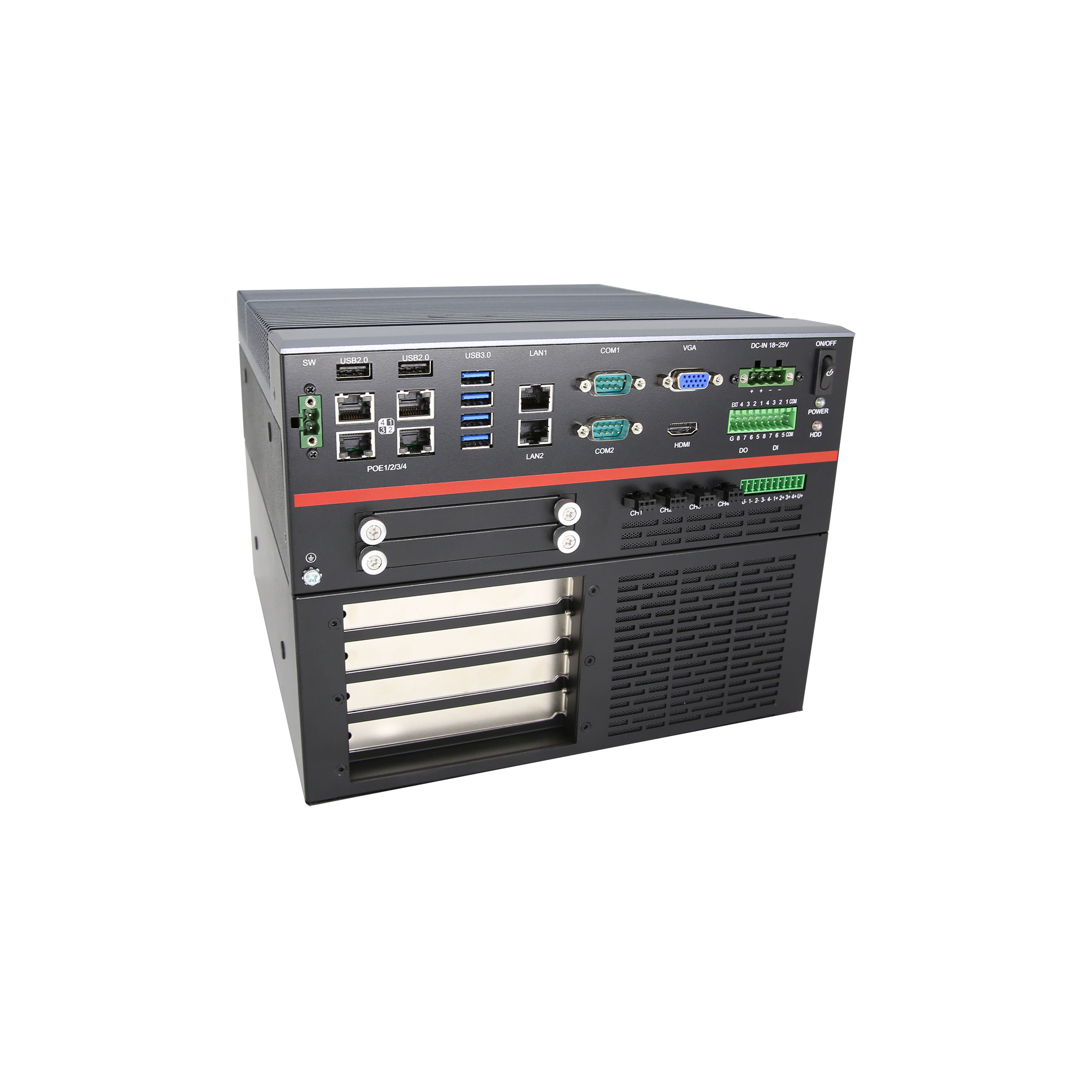

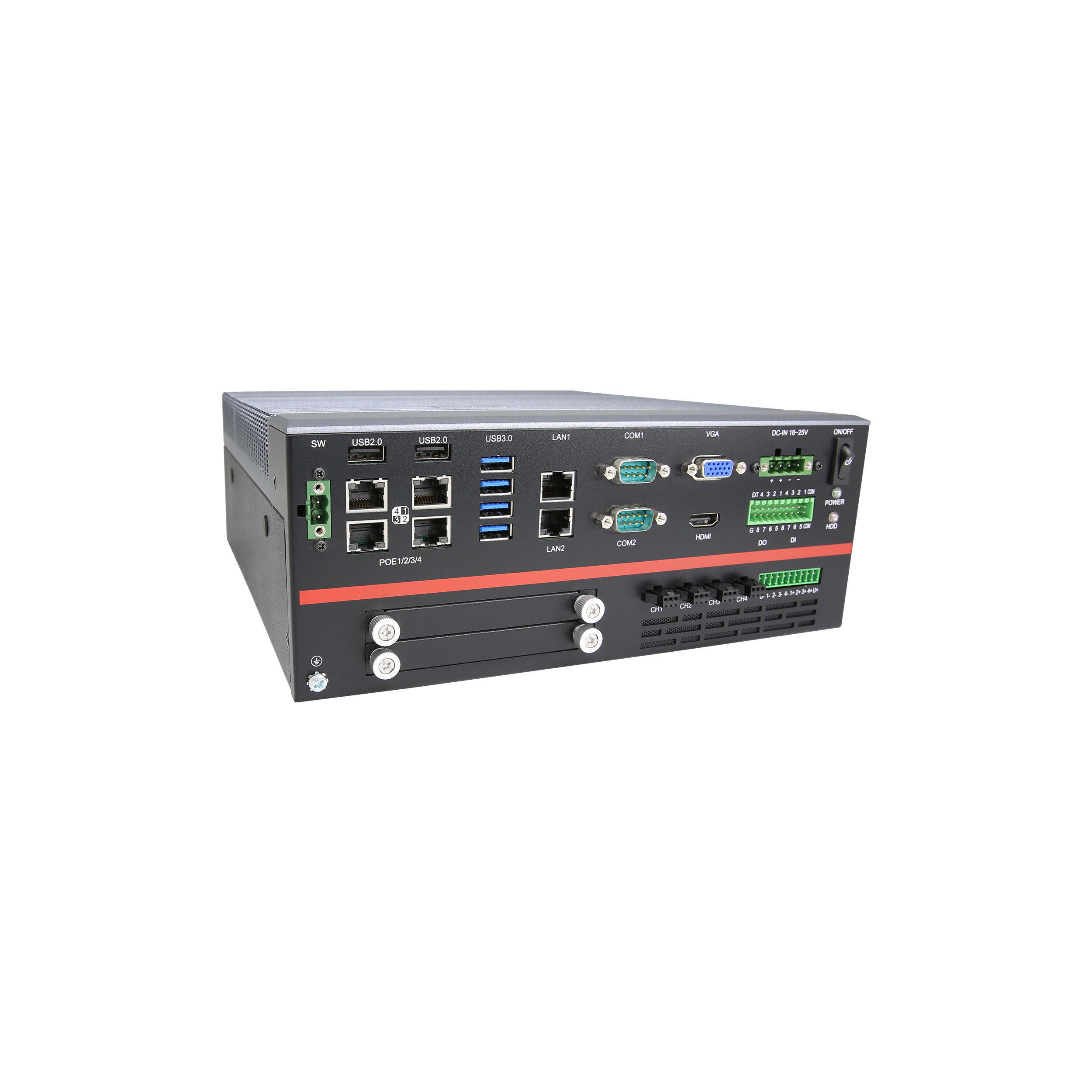

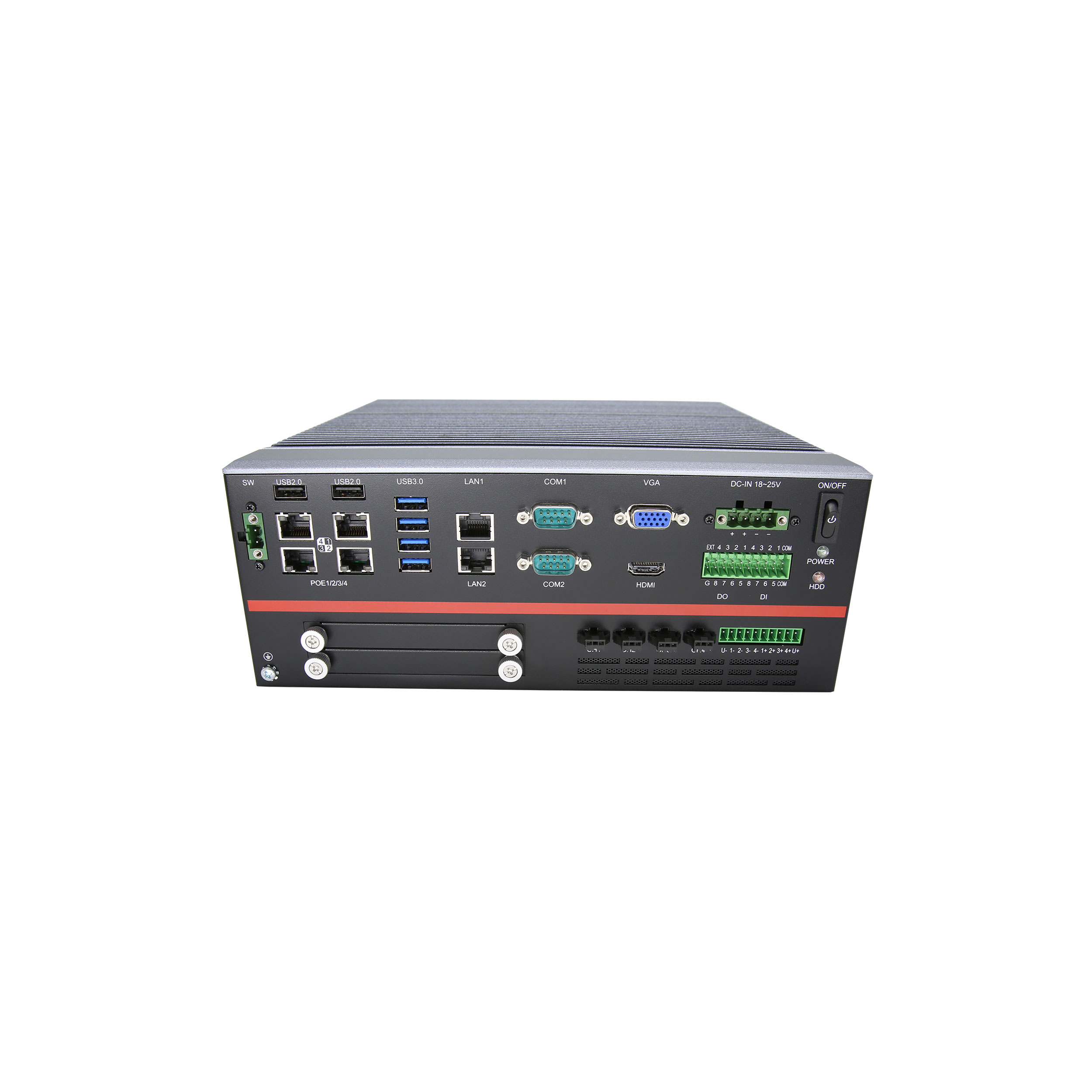

CES-EQ37-W62X

产品特性



Intel® 第八/九代 Core™ i 台式机处理器(LGA1151针)Intel® Q370 芯片组, 6 cores max TDP 65W, 8 cores max TDP 35W
Intel® 六口千兆网口, 其中四口为POE网口, 单口最大功耗15W
VGA+HDMI 双显示输出
光源4路24V恒压, 单路最大电流2.5A, 总功耗最大70W
8路光耦隔离输入, 8路光耦隔离输出(支持NPN/PNP切换)
2个2.5寸HDD/SSD 可抽取槽
1个Mini-PCIe可配mSATA SSD或其它USB2.0/PCIe 信号扩展模块
4个USB3.1 Gen2, 4个USB3.0 Mini-PCIe扩展; 2个USB2.0板载, 内置1个USB2.0 可接插加密狗
支持11个串口: 1个板载RS-232/422/485 可调, 8个Mini-PCIe扩展RS-232/422/485; 1个RS232, 1个RS232(可选)
支持2槽扩展卡(选配) 包含 1 x PCI, 1 x PCIe X16
支持4槽扩展卡(选配) 包含 1 x PCI, 1 x PCIe X16, 2 x PCIe X4
支持宽压19-24V 输入, 凤凰端子锁附, 有过流过压反向保护
支持宽温: -10~50℃(无风流)



产品规格



系统 System

处理器 Processor

Intel® 8/9 Gen. LGA1151 Core ™ i CPU 6 cores max TDP 65W, 8 cores max TDP 35W

芯片组 Chipset

Intel Q370 PCH

内存 Memory

2 x DDR4 2400/2666MHz SO-DIMM, up to 64GB

图形 Graphics

Intel® UHD Graphics 630

存储 Storage

1 x Mini-PCIe slot for m SATA SSD 2 x SATA3.0 connector for 2.5inch HDD/SSD

操作系统 OS

Windows 10, Linux

看门狗定时器 Watchdog Timer

Programmable 255 levels timer interval,from 1~255 sec/min

外部接口 External I/O

网口 Ethernet

1 x Intel® I211AT GbE (10/100/1000Mbps) 1 x Intel® I219LM GbE (10/100/1000Mbps)

显示 Video

1 x VGA, max resolution up to 2048 x 1536@50Hz 1 x HDMI 1.4, max resolution up to 4096 x 2304@24Hz

存储 Storage

2 x 2.5" SATA 3.0 Bay for 2.5" HDD/SSD, Q370 support RIAD 0/1

POE

4 x Intel® I211AT GbE (10/100/1000Mbps) 802.3 af, max TDP 15W for each

串口 COM

1 x RS-232/422/485 BIOS adjustable & 1 x RS232 (On board) 1 x RS232(Cable expansion, Optional) 8 x RS-232/422/485 (Mini-PCIe card expansion, Optional)

USB

4 x USB3.1 Gen2 compatible USB 2.0 (On board) 2 x USB2.0 (On board) 4 x USB3.0 compatible USB 2.0 (Mini-PCIe card expansion, Optional) PS:Share DMI3.0 bandwidth from PCH, total 12Gbps on all ports

DIO

Mode: NPN/PNP (Switchable) 8in8out isolated DIO esponse time≤20ms Input frequency: 1/2 Pin ≤200KHz, 3/4/5/6/7/8 Pin ≤500Hz High-voltage isolation up to 3000Vrms for DI & 2450Vrms for DO on all channels Driving capacity: 350mA max for NPN mode; 500mA max for PNP mode Support 5-24V isolated input on all channels

光源控制 Lighting Controller

4 Port lighting controller 24V output, PWM adjustment 0-100 levels brightness program adjustment 2.5A max current and 60W TDP for each channel, total 70W on all channels High-voltage isolation up to 3000Vrms on all channels Auto detect, dynamic tuning

按钮 Button

Power Button

指示灯 LED

1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) 1 x HDD LED (Red blink for Data read or write)

远程开关 Remote ON-OFF

1 x Remote ON-OFF

内部接口 Internal I/O

扩展接口 Expansion

1 x Mini-PCIe, Co-lay with SATA3.0&USB2.0&PCIe X1 signal for multiple module expansion 1 x USB2.0 connector for internal dongle

可选扩展接口 ( 两槽扩展卡) Optional (2 slot expansion card)

1 x Mini-PCIe with USB2.0 signal 1 x PCIe X16(GPU card length no longer than 248mm) 1 x PCI 1 x SIM card for 3G/4G module

可选扩展接口 ( 四槽扩展卡) Optional (4 slot expansion card

1 x Mini-PCIe with USB2.0 signal 1 x M.2 3042/3052 Key-B, Co-lay with USB3.1 G2 & PCIe signal 1 x PCIe X16(GPU card length no longer than 248mm) 2 x PCIe X4 1 x PCI 1 x SIM card for 3G/4G module 1 x SIM card slot for 5G module

环境 Environmental

操作温度 OperatingTemp.

-10℃ ~ 50℃ 65W CPU Must have 2pcs 60*20 system fan -10℃ ~ 50℃35W CPU fanless

存储温度 Storage Temp.

-40℃ ~ 85℃

湿度Relative Humidity

5% ~ 95%, 非凝结状态Non-condensing

振动 Vibration

SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation

机械冲击 Shock

Operation: 10G@11ms Non-operation: 30G@11ms

电磁兼容 ESD

Contact 6KV, Air 10KV

电源 Power

电源输入 Power Input

19-24V DC, AT/ATX Default Power consumption: Typical 180W; Maximum 330W(Suggestion, not include in package) Phoenix lockable connector Protection of over current/voltage and ereverse

显卡电源 GPU Power supply

1.GPU card TDP ≤ 120W, share power supply with system from 330W adapter 2.GPU card TDP>120W, Need additional power supply separate with system(developing)

机构Mechanical

外观 Housing

铝合金 Aluminum Alloy

安装方式 Mounting

桌面式 (Desk-Mount include horizontal and vertical)

尺寸 Dimension

Regular model: 260 x 100 x 270 mm (W x H x D) Two slot expansion model: 260 x 156 x 270 mm (W x H x D) Four slot expansion model: 260 x 200 x 270 mm (W x H x D)

重量 Weight

Regular model: 4.5kg Two slot expansion model: 5.5kg Four slot expansion model: 6.5kg

认证 Certification

安规认证 Safety Certification

CCC
