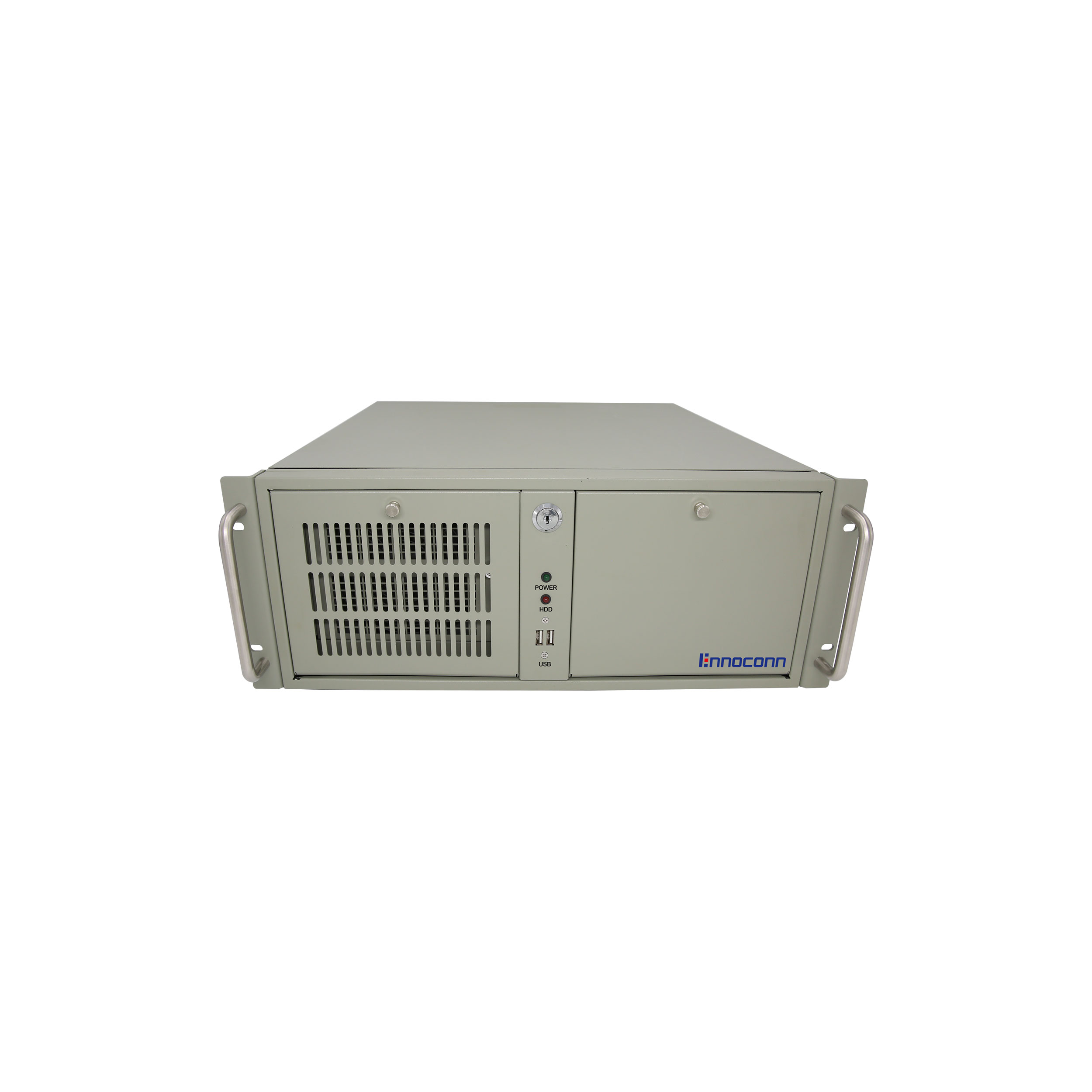

CEFS-RA22-H81A-4U
产品特性
Intel®4代酷睿 i7/i5/i3/奔腾®/赛扬®处理器, 功耗最高支援到95W
采用H81芯片组
支持双千兆网口
支持VGA、DVI双屏异显
内置PCI,PCIe插槽，支持多种模块扩展
抗震动磁盘架设计，可支持1个5.25寸光驱、2个2.5"SSD、3个3.5"HDD硬盘
前部可访问 USB接口，更易于数据传输
海岸线上的USB端口支持Ennoconn USB SR Pro技术
产品规格
系统 System
|
处理器 Processor |
Intel® 4th Gen. Core™ i3/i5/i7, Pentium®, Celeron® processor, LGA1150 Socket, TDP up to 95W |
|
芯片组 Chipset |
Intel® H81 |
|
内存 Memory |
Dual Channel, 2 x U-DIMM Slot, DDR3 (1.5V) 1333/1600MHz, up to 16GB |
|
图形 Graphics |
Intel® HD Graphics, dual display |
|
存储 Storage |
2 x SATA2.0, 1 x SATA3.0, 1 x M.2 (SATA3.0 signal) 2242/2280 |
|
操作系统 OS |
Windows/7/8.1/10, Linux |

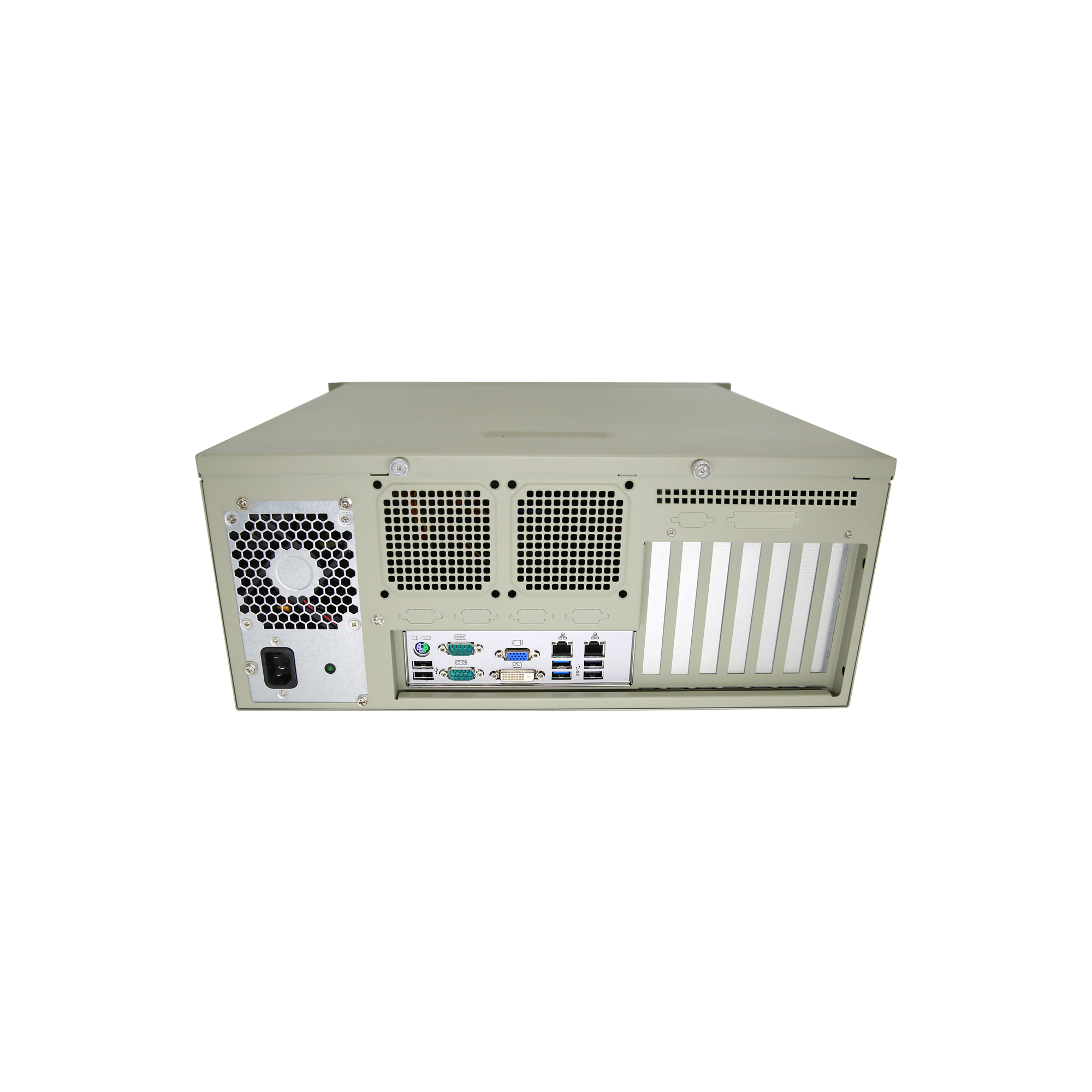

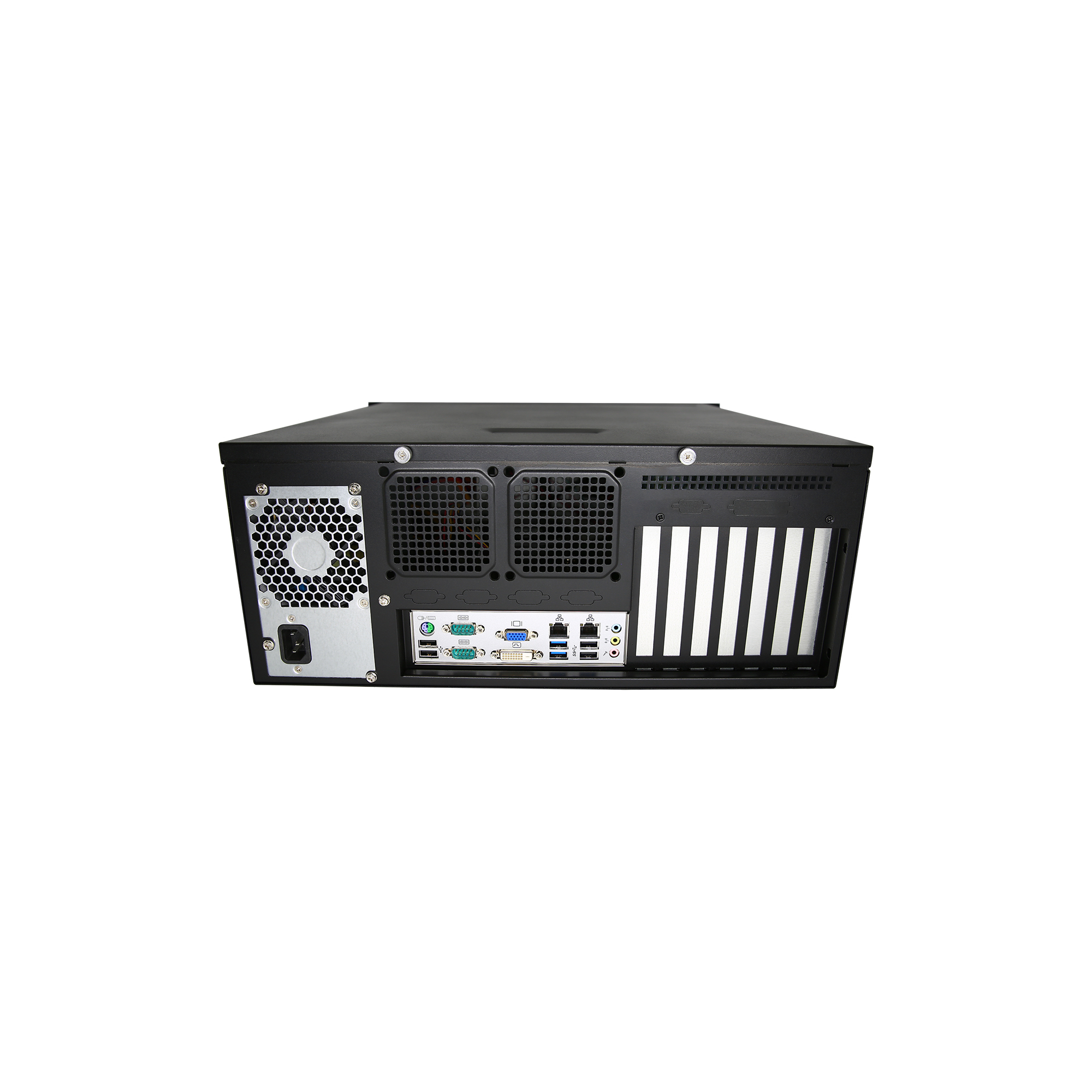

外部接口 External I/O
|
网口 Ethernet |
2 x RJ45 Intel i211AT GbE (10/100/1000 Mbps) |
|
显示 Video |
1 x DVI-D: max resolution up to 1920 x 1200@60Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz |
|
串口 COM |
2 x RS232/422/485(with auto flow control) |
|
USB |
6 x USB 2.0, 2 x USB 3.0(Support Ennoconn USB SR Pro Technology) |
|
PS/2 |
1 x PS/2(mini-DIN-6) |
|
按钮 Button |
1 x Power Button, 1 x Reset Button |
|
指示灯 LED |
1 x Power LED, 1 x HDD LED |
内部接口 Internal I/O
|
扩展接口 Expansion |
1 x PCIe X 16, 2 x PCIe X 4(X 1 Link), 4 x PCI |
|
风扇 FAN |
1 x CPU Fan, 2 x System Fan |
|
USB |
2 x USB2.0 (Type-A share USB signal with one USB2.0) |
|
GPIO |
1 x 16-bit GPIO |
|
串口 COM |
2 x RS232/485, 2 x RS232 |
环境 Environmental
|
操作温度 Operating Temp. |
0℃ ~ 40℃ |
|
存储温度Storage Temp. |
-20℃ ~ 60℃ |
|
湿度Relative Humidity |
5% ~ 95%, 非凝结状态Non-condensing |
|
随机振动 Random Vibration |
5~500Hz, 1Grms (HDD)operation |
|
正弦振动 Sine Vibration |
5~500Hz, 2G Non-operation |
|
机械冲击 Shock |
10G @ 11ms operation |
电源 Power
|
电源输入 Power Input |
100~240V(AC) |
|
电源功耗 Power Watt |
300W |
机构 Mechanical
|
外观 Housing |
SGCC |
|
尺寸 Dimension |
464(L) x 430(W) x 177(H)mm |
|
重量 Weight |
15kg(约) |
|
安装方式 Mounting |
机柜式 (Rack-Mount) |
认证 Certification
|
安规认证 Safety Certification |
CCC |
