CES-R11X-W44A
产品特性
Intel® Tiger lake i3-1115G4 3.0G(6M Cache,up to 4.1GHz)
Intel® Tiger lake i5-1135G7 2.4G(8M Cache,up to 4.2GHz)
Intel® Tiger lake i5-1145GRE 1.5G(8M Cache,up to 4.1GHz)
Intel® Tiger lake i7-1165G7 2.8G(8M Cache,up to 4.7GHz)
支持1 x SO-DIMM DDR4-3200，最大支持32GB
支持4个千兆网络
支持DP/HDMI 扩展同步于/异步显示/3显
支持M.2 SSD，M.2 WiFi, Mini-PCIe
10~36VDC
产品规格
系统 System
|
处理器 Processor |
Intel® Tiger lake i3-1115G4 3.0G(6M Cache,up to 4.1GHz) Intel® Tiger lake i5-1135G7 2.4G(8M Cache,up to 4.2GHz) Intel® Tiger lake i5-1145GRE 1.5G(8M Cache,up to 4.1GHz) Intel® Tiger lakeI7-1165G7 2.8G(8M Cache,up to 4.7GHz) |
|
内存 Memory |
1 x SDRAM DDR4 3200 MHz (max. 32G) |
|
图形 Graphics |
Intel® Iris® Xe graphics, up to 96 graphics execution units (EU) |
|
存储 Storage |
1 x M.2 2242 1 x Sata 3.1(2.5 寸硬盘) |
|
操作系统 OS |
Windows 10, Ubuntu20.04 |
|
看门狗定时器 Watchdog Timer |
Programmable 255 levels timer interval, from 1~255 sec/min |
外部接口 External I/O
|

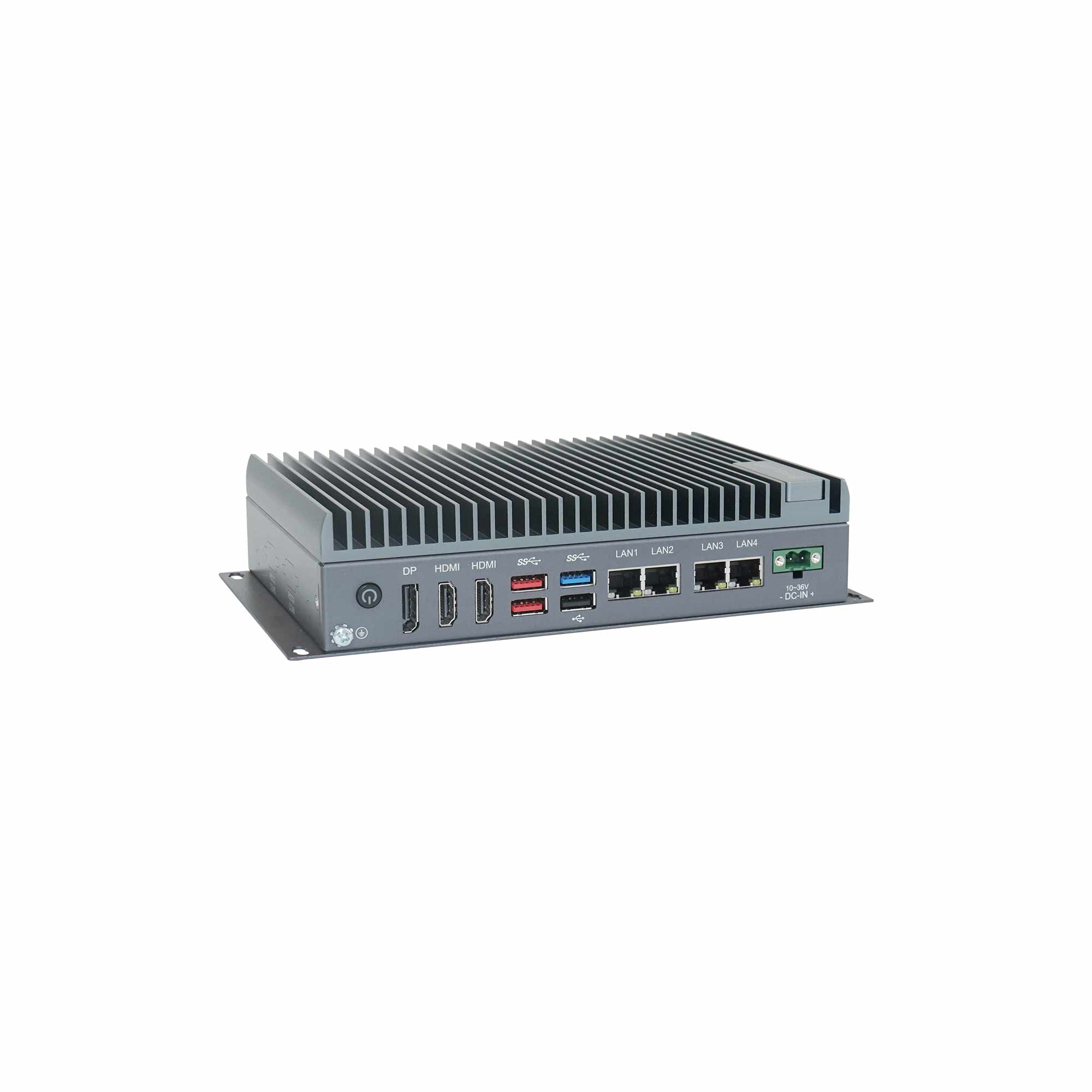

网口 Ethernet |
1 x RJ45 Intel i219LM GbE (10/100/1000 Mbps) 3 x RJ45, Intel® i210 GbE (10/100/1000 Mbps)【Colay 1211GbE】 |
|
显示 Video |
2 x HDMI, up to 4K x 2K x 24bpp@24Hz 1 x DP, up to 4096 x 2304 x 36bpp@60Hz |
|
音频 Audio |
1 x Audio(Line-out & Mic-in ) ( 芯片888S/897) |
|

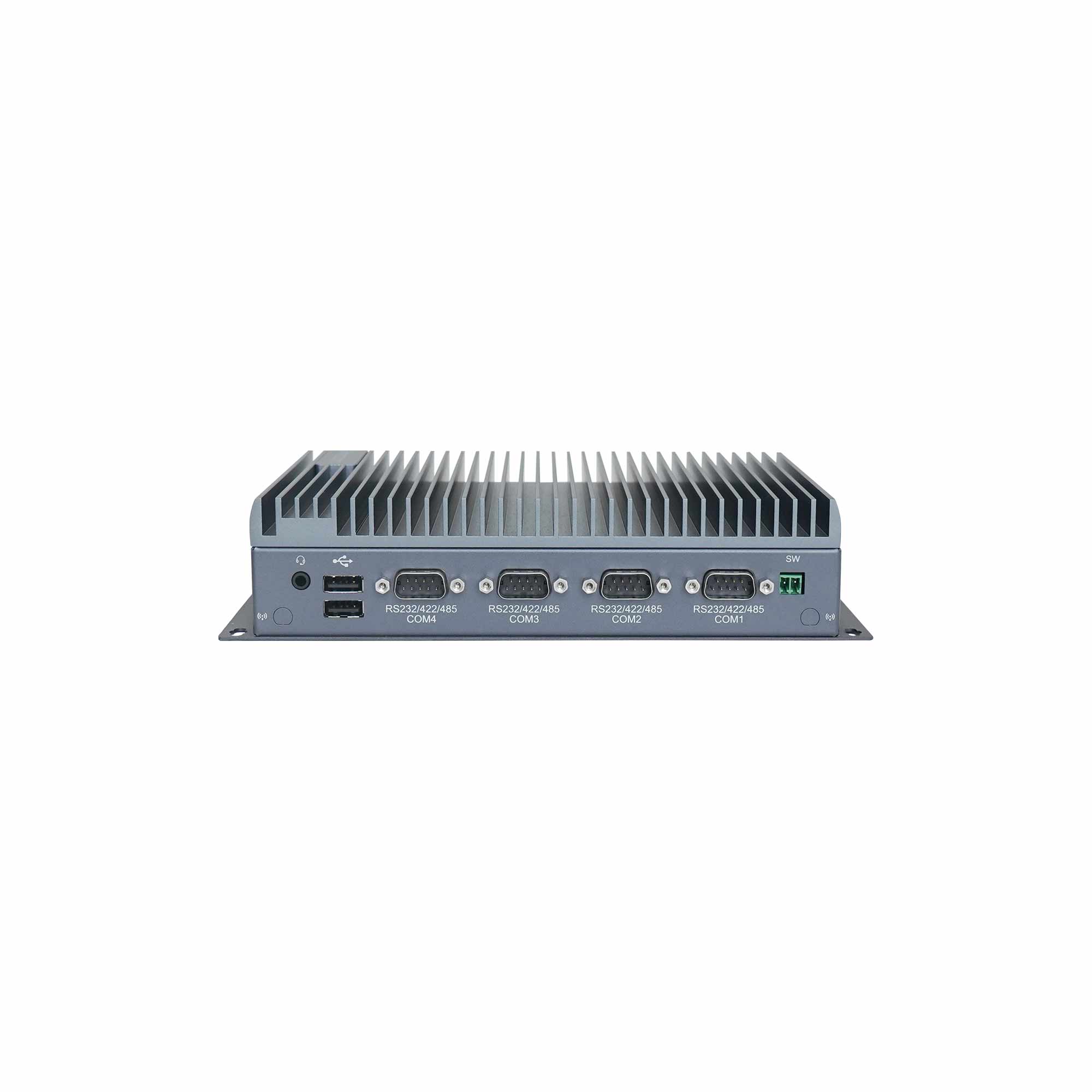

串口 COM |
4 x RS-232/422/485 (default RS-232) with auto flow control |
|
USB |
3 x USB3.2 Gen. 2 3 x USB2.0 |
|
按钮 Button |
1 x Power button W/Led |
|
远程开关 Remote ON-OFF |
1 x SW LED |
内部接口 Internal I/O
|
扩展接口 Expansion |
1 x E-Key M.2 2230 slot (PCIe X1 / USB2.0 signal supported) 1 x mPCIe (PCIe/ USB2.0/USB 3.0 signal supported) |
|
GPIO |
1 x 8bit programmable GPIO pin header【3.3 | 5V Jump adjustable】 |
|
SIM 卡 |
1 x SIM Card socket for 3G/4G module |
|
USB |
2 x USB 2.0 by Pinhead |
|
串口 |
2 x COM232 by Pinhead |
环境 Environmental
|
操作温度 OperatingTemp. |
-20℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD) |
|
存储温度 Storage Temp. |
-40℃ ~ 85℃ |
|
湿度Relative Humidity |
5% ~ 95%, 非凝结状态Non-condensing |
|
振动 Vibration |
SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation |
|
机械冲击 Shock |
Operation: 10G@11ms Non-operation: 30G@11ms |
电源 Power
|
电源输入 Power Input |
10~36VDC, 2-pin phoenix connector |
机构Mechanical
|
外观 Housing |
铝合金 Aluminum Alloy |
|
安装方式 Mounting |
Desk-Mount, Wall-Mount, DIN-Rail(optional) VESA-mount (75 x 75mm, 100 x 100mm optional) |
|
尺寸 Dimension |
224 x 140 x 49.2 mm |
|
重量 Weight |
1.6 kg |
认证 Certification
|
安规认证 Safety Certification |
CCC, CE, FCC |
