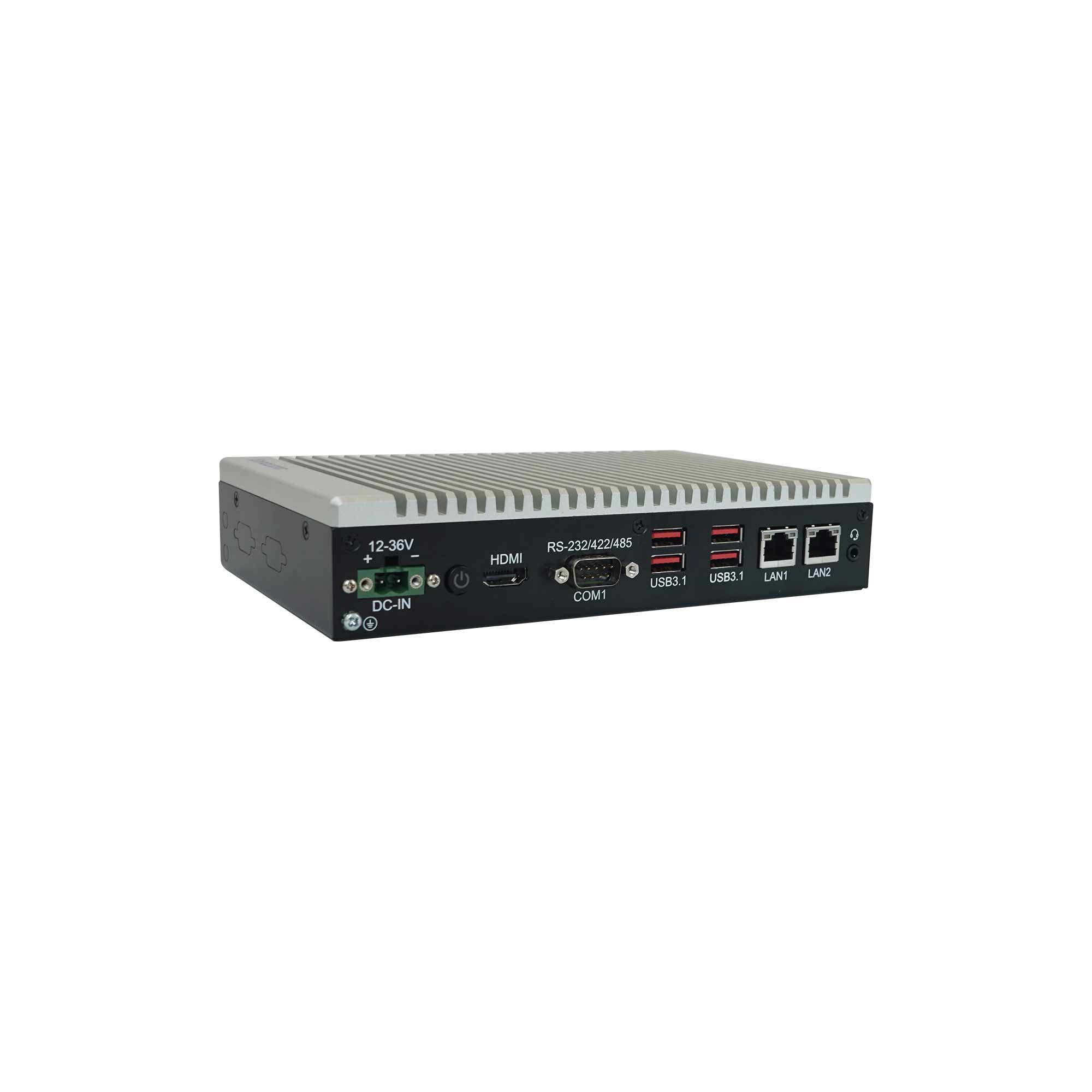

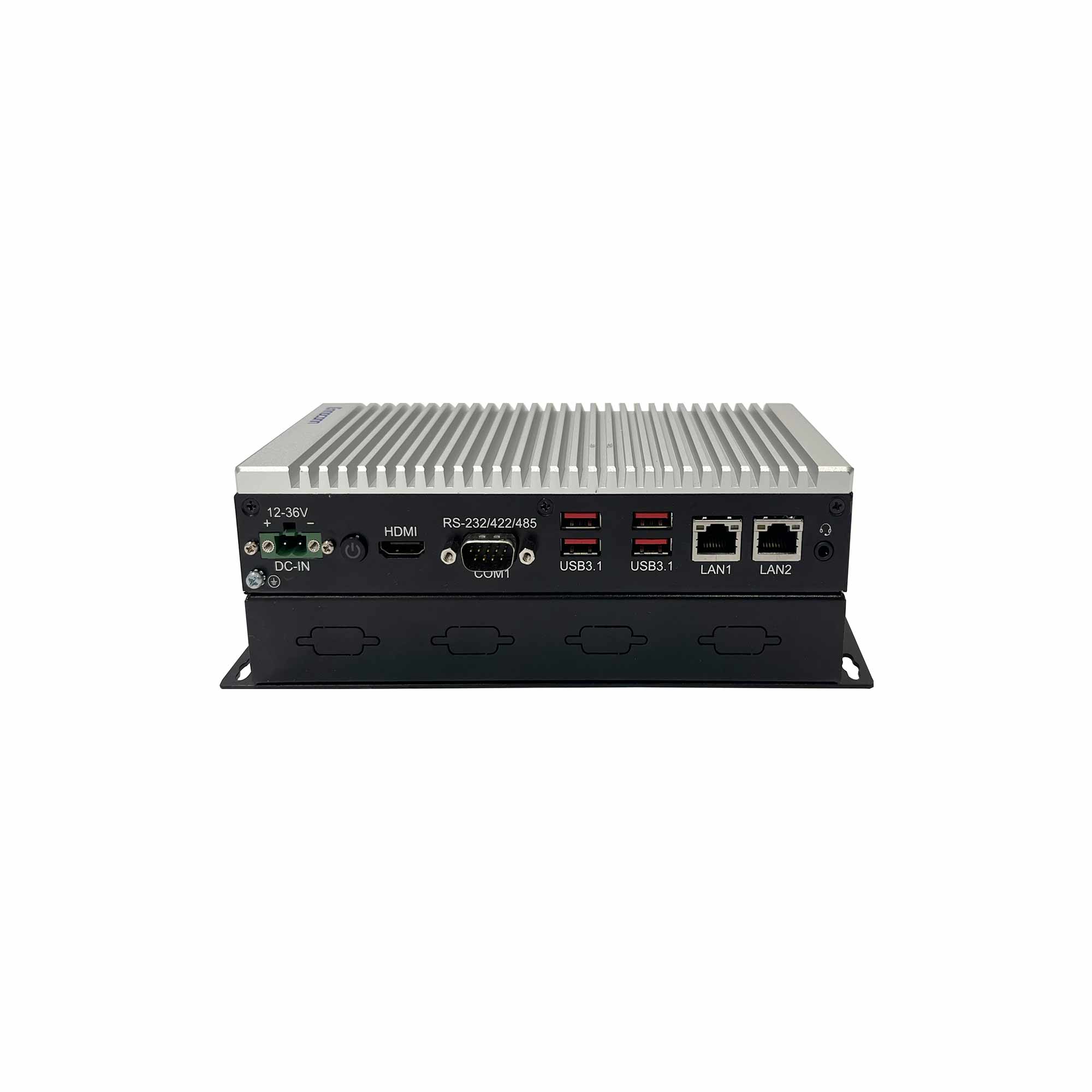

CES-R642-W26X
产品特性
Intel(R) Celeron(R) J6412 CPU Elkhart Lake（2.0 GHz/2.6GHz）
支持1 x SO-DIMM DDR4，最大支持32GB
支持2个千兆网络
支持M.2 SSD, MiniPCIE，mSATA
12~36V宽压设计，可锁附DC-IN接口
产品规格
系统 System
|
处理器 Processor |
Intel(R) Celeron(R) J6412 CPU Elkhart Lake（2.0 GHz/2.6GHz） |
|
内存 Memory |
1 x SDRAM DDR4 3200 MHz (max. 32G) |
|
图形 Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
|
存储 Storage |
1 x M.2 2242 1 x mSATA |
|
操作系统 OS |
Windows 10, Ubuntu20.04 |
|
看门狗定时器 Watchdog Timer |
Programmable 255 levels timer interval, from 1~255 sec/min |
外部接口 External I/O
|
网口 Ethernet |
2 x RJ45 Intel I210AT for 10/100/1000 Mbps |
|
显示 Video |
1 x HDMI up to 4096 x 2160 @ 24 Hz |
|
音频 Audio |
1 x Audio(Line-out & Mic-in ) ( 芯片888S/897) |
|
串口 COM |
1 x RS-232/422/485 (default RS-232) with auto flow control， 4 x RS485 ± 2KV防护 1 x RS232 |
|
USB |
4 x USB3.1 2 x USB2.0(optional by internal pin head ) |
|
GPIO |
1 x 4bit programmable GPIO (default 3.3V, 5V optional) |
|
按钮 Button |
1 x Power button(W / Led) |
内部接口 Internal I/O
|
扩展接口 Expansion |
1 x Mini-PCIe slot (PCIe/ USB2.0 / mSATA signal supported) |
|
SIM 卡 |
1 x SIM Card socket for 3G/4G module |
环境 Environmental
|
操作温度 OperatingTemp. |
-20℃ ~ 60℃ (SSD) |
|
存储温度 Storage Temp. |
-40℃ ~ 85℃ |
|
湿度Relative Humidity |
5% ~ 95%, 非凝结状态Non-condensing |
|
振动 Vibration |
SSD: 5~500Hz, 2Grms operation |
|
机械冲击 Shock |
Operation: 10G@11ms Non-operation: 30G@11ms |
电源 Power
|
电源输入 Power Input |
12-36V DC, 2-pin phoenix connector |
机构Mechanical
|
外观 Housing |
铝合金 Aluminum Alloy |
|
安装方式 Mounting |
Desk-Mount, Wall-Mount |
|
尺寸 Dimension |
200 x 130 x 41 mm |
|
重量 Weight |
1.5Kg |
认证 Certification
|
安规认证 Safety Certification |
CCC、CE、FCC、UL |
