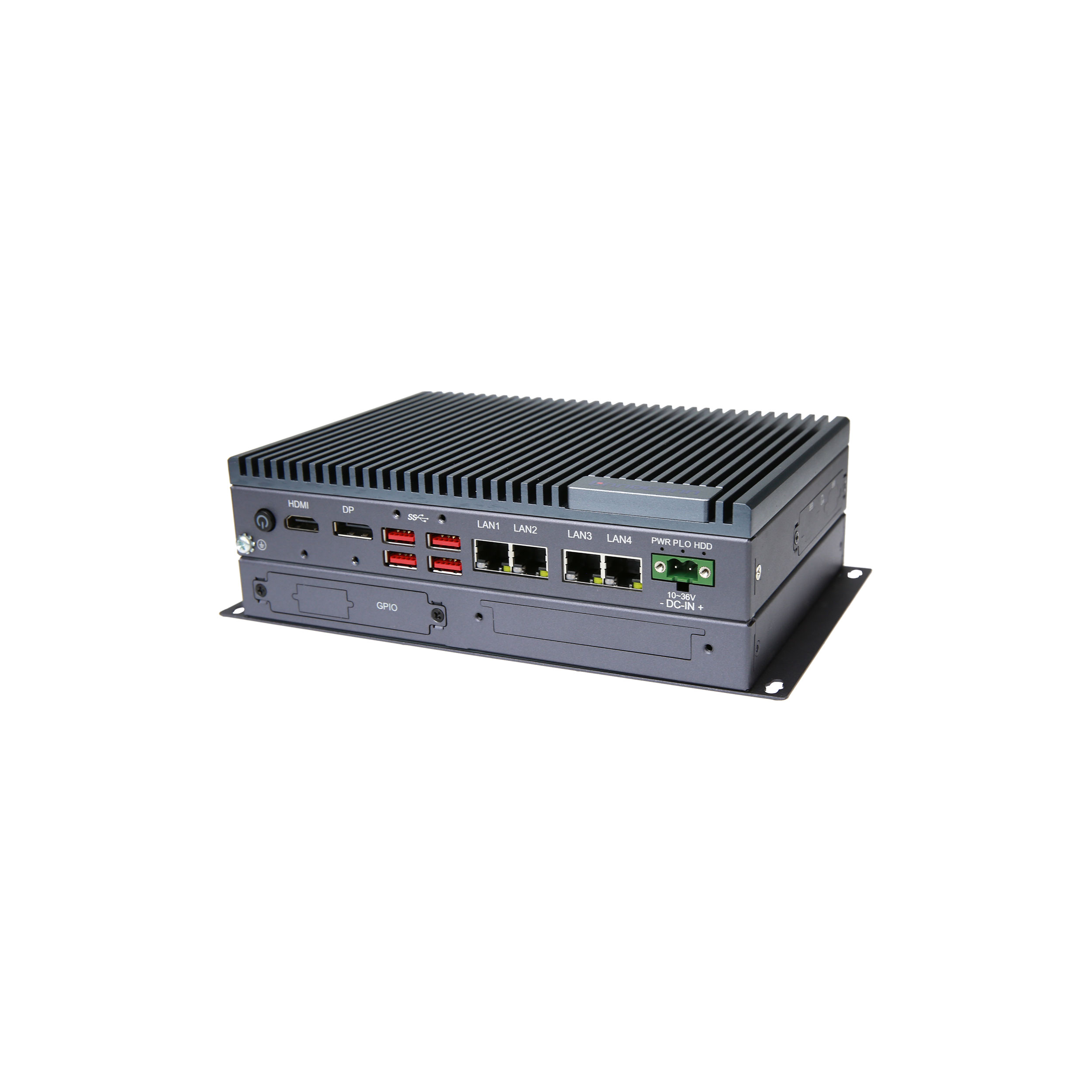

CES-R814(R836)(R866)-W44A
产品特性
板载Intel® 8th Gen. U Processors i3-8145UE/i5-8365UE/i7-8665UE CPU，主频最大可以达到2.2GHz
支持单通道DDR4 2133/2400 MHz SO-DIMM内存插槽，内存容量最大可达32GB
支持4个千兆网口
支持DP/HDMI/EDP 扩展同步/异步显示
内置2 x Mini-PCIe,1 x M.2 2242,1 x M.2 2230(CNVI),1 x M.2 3042/3052 多种模块扩展
10~36V宽压设计，可锁附DC-IN接口
产品规格
系统 System
|
处理器 Processor |
Intel® 8th Gen. U Dual Core Processors i3-8145UE (2.2GHz up to 3.9GHz) Intel® 8th Gen. U Quad Core Processors i5-8365UE (1.6GHz up to 4.1GHz) Intel® 8th Gen. U Quad Core Processors i7-8665UE (1.7 GHz up to 4.4GHz) |
|
内存 Memory |
1 x DDR4 2133/2400MHz SO-DIMM up to 32 GB |
|
图形 Graphics |
Intel@UHD Graphics620, dual display |
|
存储 Storage |
1 x mSATA Colay Mini-PCIe Connect 1 x M.2 2242 SSD 1 x 2.5" SATA 3.0 HDD/SSD BAY（与M.2 2242 组Raid 0/1） |
|
操作系统 OS |
Windows 10, Linux |
|
看门狗定时器 Watchdog Timer |
Programmable 255 levels timer interval, from 1~255 sec/min |
外部接口 External I/O
|
网口 Ethernet |
4 x RJ45, Intel® (2x i211 and 2x i210) GbE (10/100/1000 Mbps), support Wake On Lan |
|
显示 Video |
1 x HDMI: max resolution up to 4096x2304@24Hz 1 x DP: max resolution up to 4096x2304@60Hz |
|
音频 Audio |
1 x Audio(Line-out&Mic-in 2 in 1) Realtek® ALC888S HD Audio codec |
|

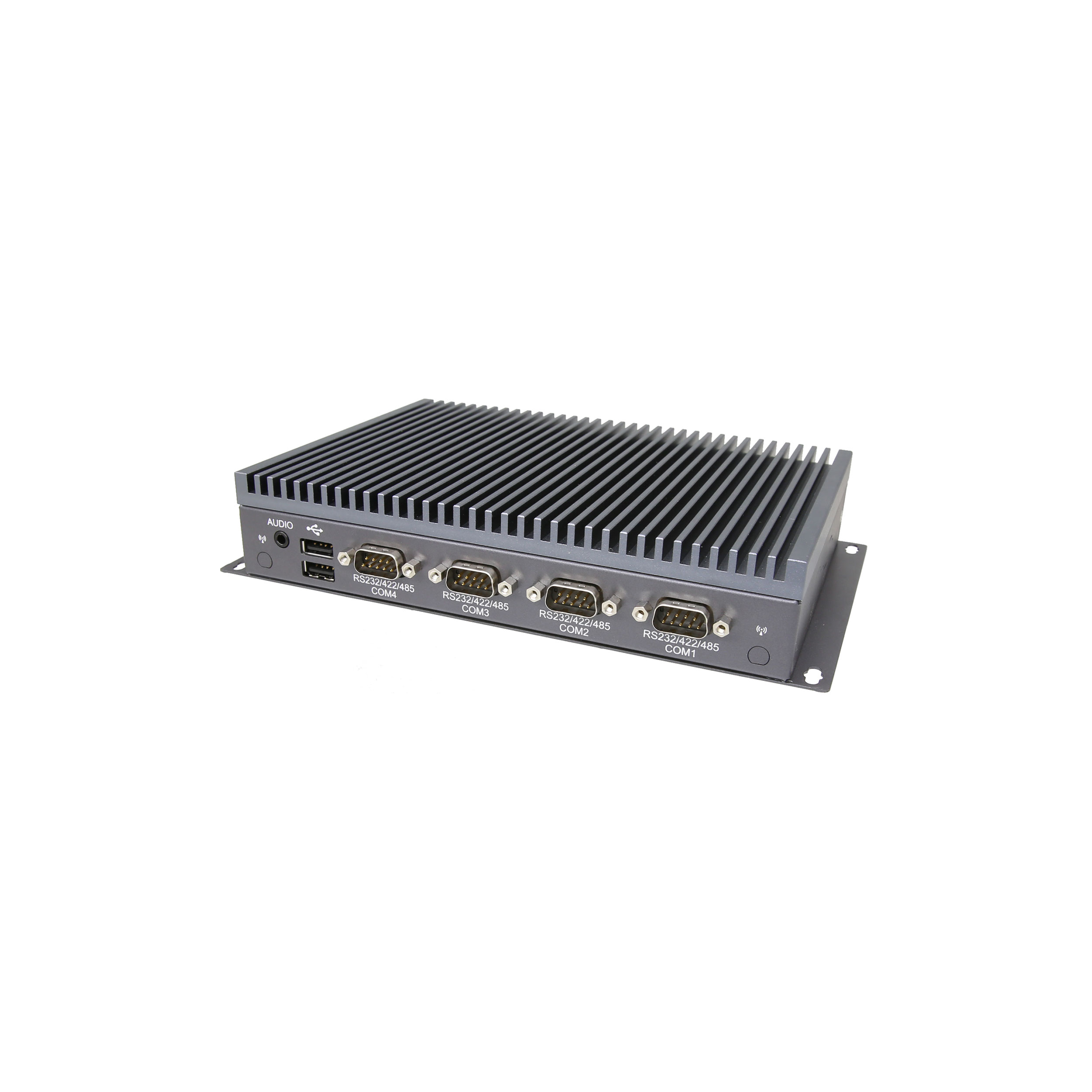

串口 COM |
4 x RS232/422/485 auto-flow 2 x RS232 (optional by 3*3 pin-head) |
|
USB |
4 x USB 3.1 Gen2 2 x USB 2.0 |
|
按钮 Button |
1 x Power button (White for Power-on, Blink for Sleep mode,Off for Power-off) |
|
指示灯 LED |
1 x Power LED (Green for DC-IN) 1 x HDD LED (Green blink for Data read or write) 1 x programmable LED (Green Default monitoring CPU temperature) |
内部接口 Internal I/O
|
扩展接口 Expansion |
1 x Mini-PCIe slot(PCIE/SATA/USB2.0 Singal Support） 1 x M.2 2230 Key-E slot(only supported CNVI Wifi module ) |
|
功放 Speaker |
1 x Internal (3W 4Ω) Speaker pin-head |
|
LPC |
1 x LPC |
|
GPIO |
1 x Internal 8bit programmable GPIO pin-head |
|
SIM 卡 |
1 x SIM Card socket for 3G/4G module |
扩展模组 Extension module
|
Extension Module A (optional) |
1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported） 1 x M.2 3042/3052 Key-B slot (5G communication module supported) 1 x EDP: max resolution up to 4096x2304@60Hz 1 x SIM socket for 5G module |
|
Extension Module B (optional) |
1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported) 1 x Built-in USB3.0 1 x eDP: max resolution up to 4096x2304@60Hz |
|
Extension Module C (optional) |

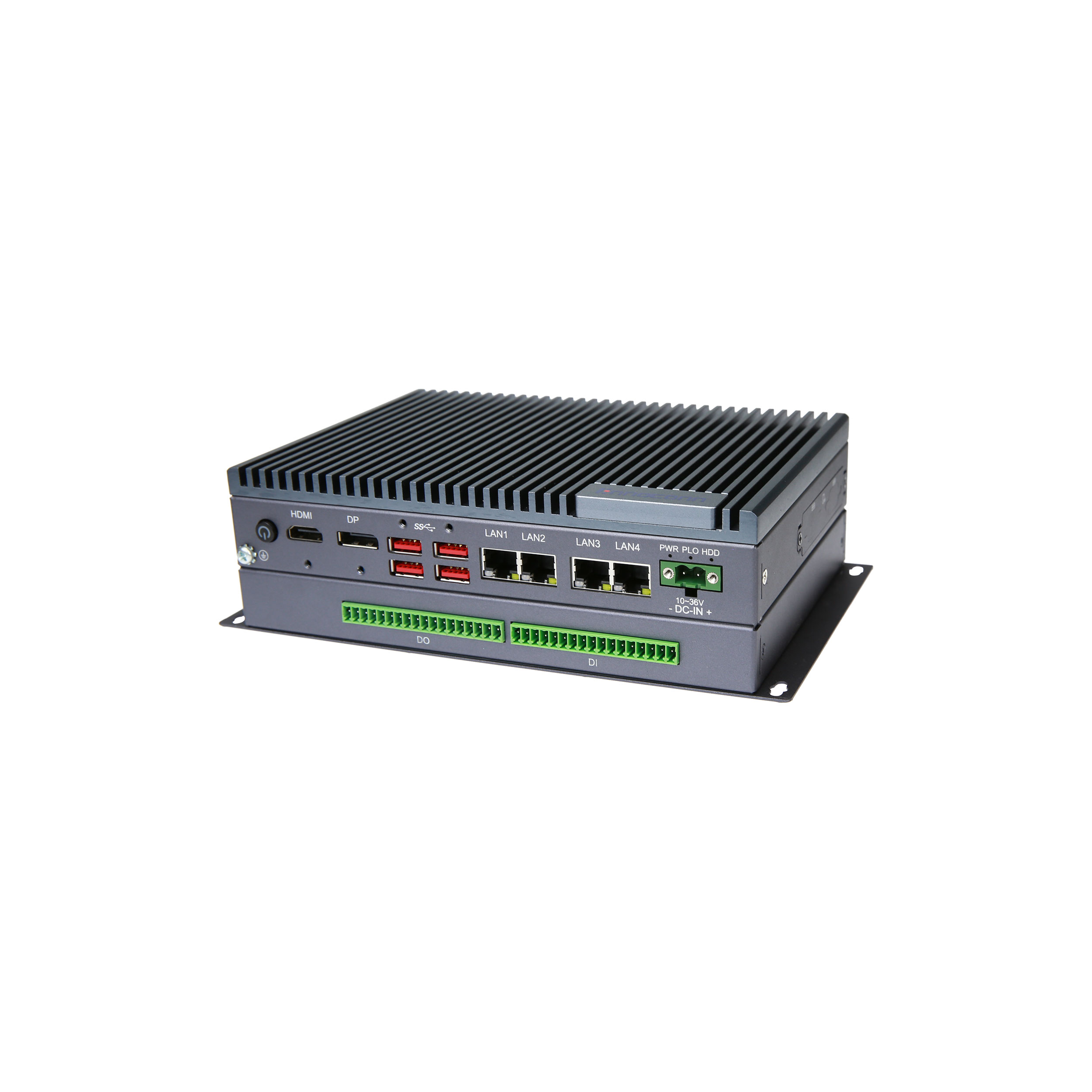

1 x 32bit DI/O with optocoupler isolation DI 2500vrms, DO 2500vrms, response time ≤2ms，Output Frequency≤500Hz ,Maximum driving capacity 100mA ,NPN or PNP by optional |
环境 Environmental
|
操作温度 OperatingTemp. |
-20℃ ~ 60℃(SSD), 0℃ ~ 40℃(HDD) |
|
存储温度 Storage Temp. |
-40℃ ~ 85℃ |
|
湿度Relative Humidity |
5% ~ 95%, 非凝结状态Non-condensing |
|
振动 Vibration |
SSD: 5~500Hz, 5Grms operation (Only Use Solid state SSD) HDD: 5~500Hz, 1Grms operation |
|
机械冲击 Shock |
Operation: 50G@11ms（Only Use Solid state SSD） Non-operation: 30G@11ms |
电源 Power
|
电源输入 Power Input |
10~36V DC, 2-pin phoenix connector |
机构Mechanical
|
外观 Housing |
铝合金 Aluminum Alloy |
|
安装方式 Mounting |
Desk-Mount（桌面式） Wall-Mount（壁挂式） VESA-Mount (100 x 100mm)(optional) |
|
尺寸 Dimension |

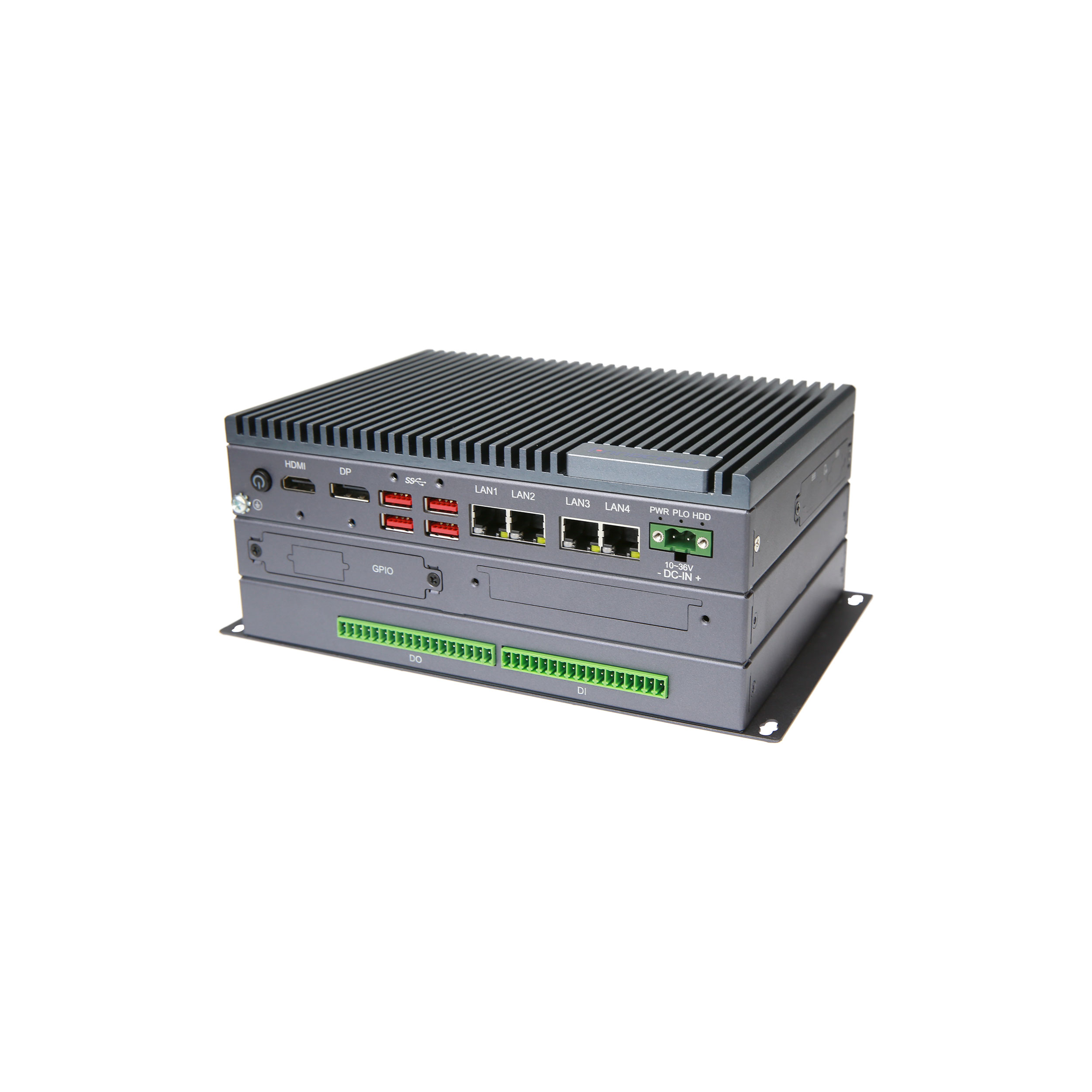

224 x 140 x 40.2 mm (基础型) 224 x 140 x 64 mm (一层扩展) 224 x 140 x 87.8 mm (二层扩展) |
|
重量 Weight |
1.35kg |
认证 Certification
|
安规认证 Safety Certification |
CCC, CE, FCC |
【1】Module B 与 Module A 不能同时选择
