CEP-15xW-H61I
产品特性
Intel® H610 芯片组，支持12th/13th/14th Generation Intel® Core™ i9/ i7/i5/i3 处理器（LGA1700）TDP 35W
15.6英寸 LED背光显示屏，前面框支持IP66防护等级
铝合金的机身使其轻薄、坚固稳定、散热效果更好
可选工业等级10点投射式电容触摸屏或全平面五线电阻屏
支持无线、蓝牙、4G功能扩展
支持4个千兆网口
宽压19-24V DC-IN，可锁附凤凰端子接口
支持远程开关
产品外壳接地保护
内置1 x 2.5寸HDD/SSD可扩充支架
内置2个3W4Ω Speaker
支持标准VESA及嵌入式安装方式
产品规格
系统 System
|
处理器 Processor |
Intel® H610 芯片组，支持12th/13th/14thGeneration Intel® Core™ i9/ i7/i5/i3 处理器（LGA1700）TDP 35W |
|
芯片组 Chipset |
Intel® H610 Chipset |
|
内存 Memory |
1 x SO-DIMM Slot DDR5 4800MHz, up to 32GB |
|
存储 Storage |
1 x 2.5" SATA3.0 HDD/SSD 1 x M.2 2242 SSD slot |
|
图形 Graphics |
Intel® UHD Graphics 770 |
|
操作系统 OS |
Windows10, Windows 11, Linux |
|
看门狗定时器 Watchdog Timer |
Programmable 255 levels timer interval，from 1~255 sec/min |
显示屏 Display
|
尺寸 Size |
15.6 inches |
|
分辨率 Resolution |
1920(H) x 1080(V) |
|
屏幕宽高比 Ratio |
16:9 |
|
亮度 Brightness |
350 nits |
|
可视角 Viewing Angle |
CR ≥ 10, 89°(T)/89°(B) 89°(L)/89°(R) |
|
对比度 Contrast Ratio |
800 |
|
背光 Backlight |
LED Backlight |
|
背光寿命 Backlight Lifetime |
50000Hrs |
触摸屏 Touchscreen
|
触摸屏 Touch Type |
10点投射式电容屏 P-cap Multi-Touch；全平面五线电阻屏5-Wire Resistive Touch |
|
触击 Touch |
35,000,000 times；35,000,000 times |

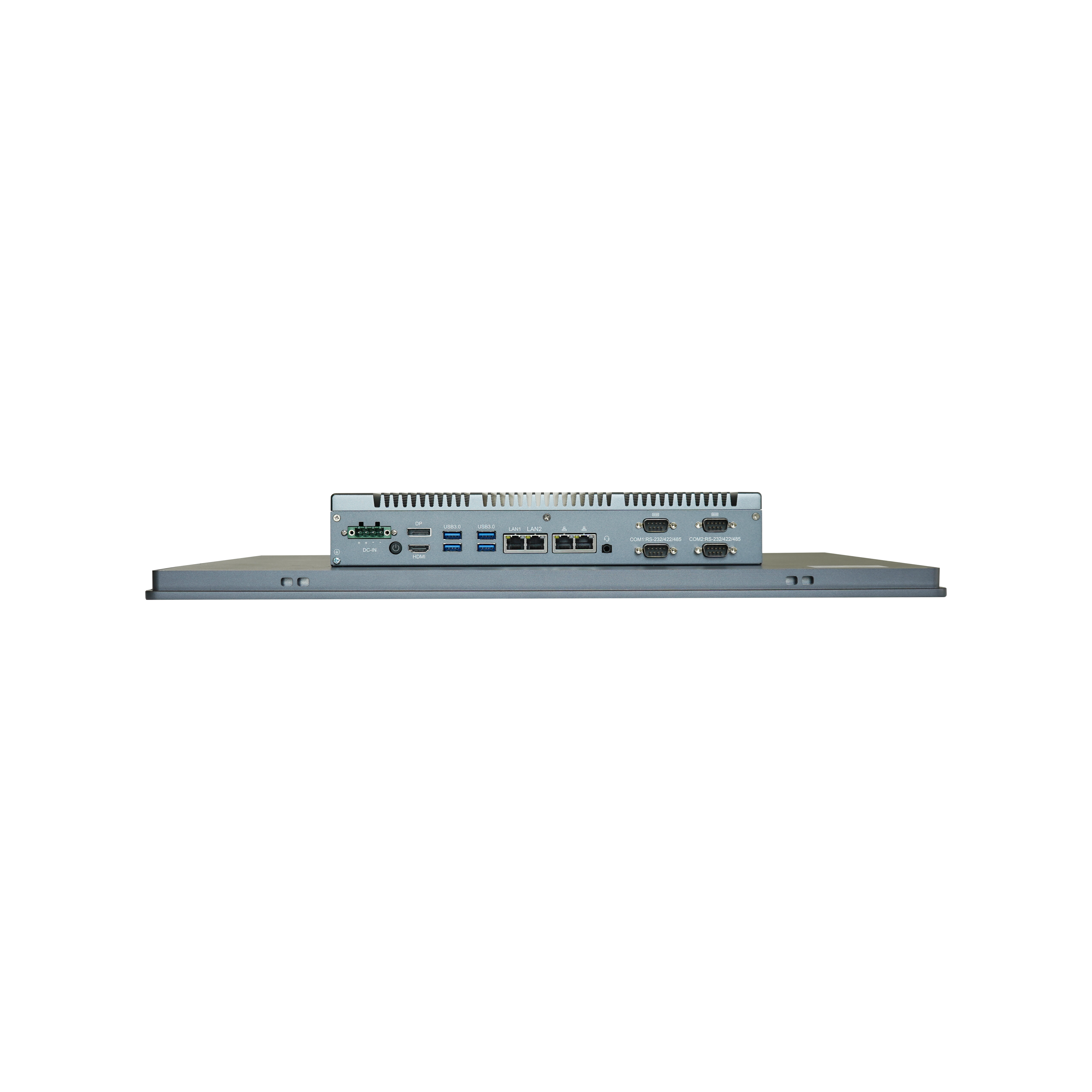

外部接口 External I/O
|
串口 COM |
2 x COM RS485/422/232 (COM1~COM2) 2 x COM RS232 (COM3~COM4) |
|
USB |
2 x USB3.2（Gen2） 2 x USB3.2（Gen1） |
|
网口 Ethernet |
1 x RJ45 I210AT LAN for 10/100/1000 Mbps 1 x RJ45 I219-V LAN for 10/100/1000 Mbps 2 x RJ45 I226V LAN for 10/100/1000 Mbp |
|
显示 Video |
1 x HDMI: 最大分辨率 4096x2160@24Hz 1 x DP: 最大分辨率 7680x4320@60Hz |
|
音频 Audio |
1 x Audio(Line-out&Mic-in 2 in 1), Realtek® ALC888S HD Audio codec 2 x Speaker 3W4Ω |
|
开关按键Power bottom |
1 x Power bottom W/LED |
|
远程开关 Remote ON-OFF |
1 x remote off (SW) |
|
电源输入 Power Input |
1 x Power Connector (4P Phoenix) |
内部接口 Internal I/O
|
扩展接口 Expansion |
1 x Mini-PCIe slot (PCIe/ USB2.0 signal supported) 1 x E-Key M.2 2230 slot (PCIe signal supported) 1 x SIM socket for 3G/4G module 备注：ODM/OEM项目可支持扩展1 x 8 bit GPIO (Pin Header),2 x USB2.0(Pin Header) , 2 x RS232(Pin Header) |
机构 Mechanical
|
前框 Front Panel |
铝 Aluminum |
|
铝挤 Heat-Sink |
铝 Aluminum |
|
底板 Rear Cover |
铁 SECC |
|
安装方式 Mounting |
Panel Mount, Wall and VESA-mount (100 x 100mm) |
|
尺寸 Dimension |
395(W) x 245.5(H) x 71(D)mm |
|
建议开孔尺寸Cut Out |
387 x 237.5mm |
|
重量 Weight |
5.64kg |
环境 Environmental
|
操作温度 Operation Temp. |
-10℃ ~ 50℃ with 0.7m/s air flow (with 35W CPU and industrial SSD) 0℃ ~ 40℃ with 0.7 m/s air flow (HDD) |
|
存储温度 Storage Temp. |
-40℃ ~ 70℃ |
|
湿度 Relative Humidity |
5% ~ 95%, 非凝结状态 Non-condensing |
|
随机振动 Random Vibration |
5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation |
|
正弦振动 Sine Vibration |
5~500Hz, 2G Non-operation |
|
机械冲击 Shock |
10g 11ms operation, 30g 11ms Non-operation |
|
前面板防护 Ingress Protection |
Front panel IP66 |
电源 Power
|
电源输入 Power Input |
19-24V DC |
认证 Certification
|
安规认证 Safety Certification |
CE/FCC/CCC |
