CEAS-113X(112X)-W4XA
产品特性
Intel Core i5-1235U(1.3 GHz/4.4GHz),10(Threads: 12)
Intel Core i7-1265U(1.8 GHz/4.8GHz),10(Threads: 12)
Intel Core i3-1315U(1.2 GHz/4.5GHz),6(Threads: 8)
Intel Core i5-1335U(1.3 GHz/4.6GHz),10(Threads: 12)
Intel Core i7-1365U(1.8 GHz/5.2GHz),10(Threads: 12)
支持1 x SO-DIMM DDR5，最大支持48GB
支持4个千兆网络
支持2 x HDMI 扩展同步/异步显示/双显
支持M.2 SSD，M.2 WIFI, M.2 2280(NVMe),MiniPCIe，3042/3052 5G
10V~36V宽压输入
产品规格
系统 System
|
处理器 Processor |
Intel Core i5-1235U(1.3 GHz/4.4GHz),10(Threads: 12) Intel Core i7-1265U(1.8 GHz/4.8GHz),10(Threads: 12) Intel Core i3-1315U(1.2 GHz/4.5GHz),6(Threads: 8) Intel Core i5-1335U(1.3 GHz/4.6GHz),10(Threads: 12) Intel Core i7-1365U(1.8 GHz/5.2GHz),10(Threads: 12) |
|
内存 Memory |
1 x SDRAM DDR5 (max. 48G) |
|
图形 Graphics |
Intel UHD Graphics |
|
存储 Storage |
1 x M.2 2242 SSD(SATA Signals)[1][2] 1 x M.2 2280 NVMe(PCIe x 4 signals) 1 x 2.5"SATA 3.0 HDD/SSD[2] |
|
操作系统 OS |
Windows 10，Windows 11， Ubuntu22.04 |
|
看门狗定时器 Watchdog Timer |
Programmable 255 levels timer interval, from 1~255 sec/min |
外部接口 External I/O
|
网口 Ethernet |
LAN1：1 x RJ45 I219-LM for 10/100/1000 Mbps, support Wake On LAN LAN2/3/4：3 x RJ45 Intel I226-V for 10/100/1000 Mbps,support Wake On LAN |
|
显示 Video |
2 x HDMI Up to 4096 x 2304 @ 60 Hz |
|
音频 Audio |
1 x Audio(Line-out & Mic-in ) ( 芯片888S/897) |
|
串口 COM |
4xRS-232/422/485(default RS-232) with auto flow control【5PIN Phoenix Terminal Head Interface] |
|
USB |
3 x USB3.2 3 x USB2.0 |
|
按钮 Button |
1 x Power button W/Led |
|
远程开关 Remote ON-OFF |
1 x SW |
内部接口 Internal I/O
|
扩展接口 Expansion |
1 x full-size MiniPCIe (PCIe/ USB2.0 signal supported ) 1 x E-Key M.2 2230 slot (PCIe x 1 / USB2.0 signal supported) 1 x M.2 (M key) for 2280 NVMe (PCIe x 4 signals) 1 x M.2 3042/3052 cellular modules (USB3.2 Signals)[1] |
|
GPIO |
1 x 8bit programmable GPIO pin header 【3.3 | 5V Jump adjustable】 |
|
SIM 卡 |
1 x SIM Card socket for 4G&5G module |
|
TPM2.0 |
DTPM2.0 function |
|
USB |
2 x USB2.0 by pin head |
|
串口 |
2 x COM RS232 by 3-wire Pin head |
环境 Environmental
|
操作温度 OperatingTemp. |
-20℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD) |
|
存储温度 Storage Temp. |
-40℃ ~ 85℃ |
|
湿度Relative Humidity |
5% ~ 95%, 非凝结状态Non-condensing |
|
振动 Vibration |
SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation |
|
机械冲击 Shock |
Operation: 10G@11ms Non-operation: 30G@11ms |
电源 Power
|
电源输入 Power Input |
10~36V 宽压输入, 2-pin phoenix connector |
机构Mechanical
|
外观 Housing |
铝合金 Aluminum Alloy |
|
安装方式 Mounting |
Desk-Mount, Wall-Mount, DIN-Rail(optional) |
|
尺寸 Dimension |

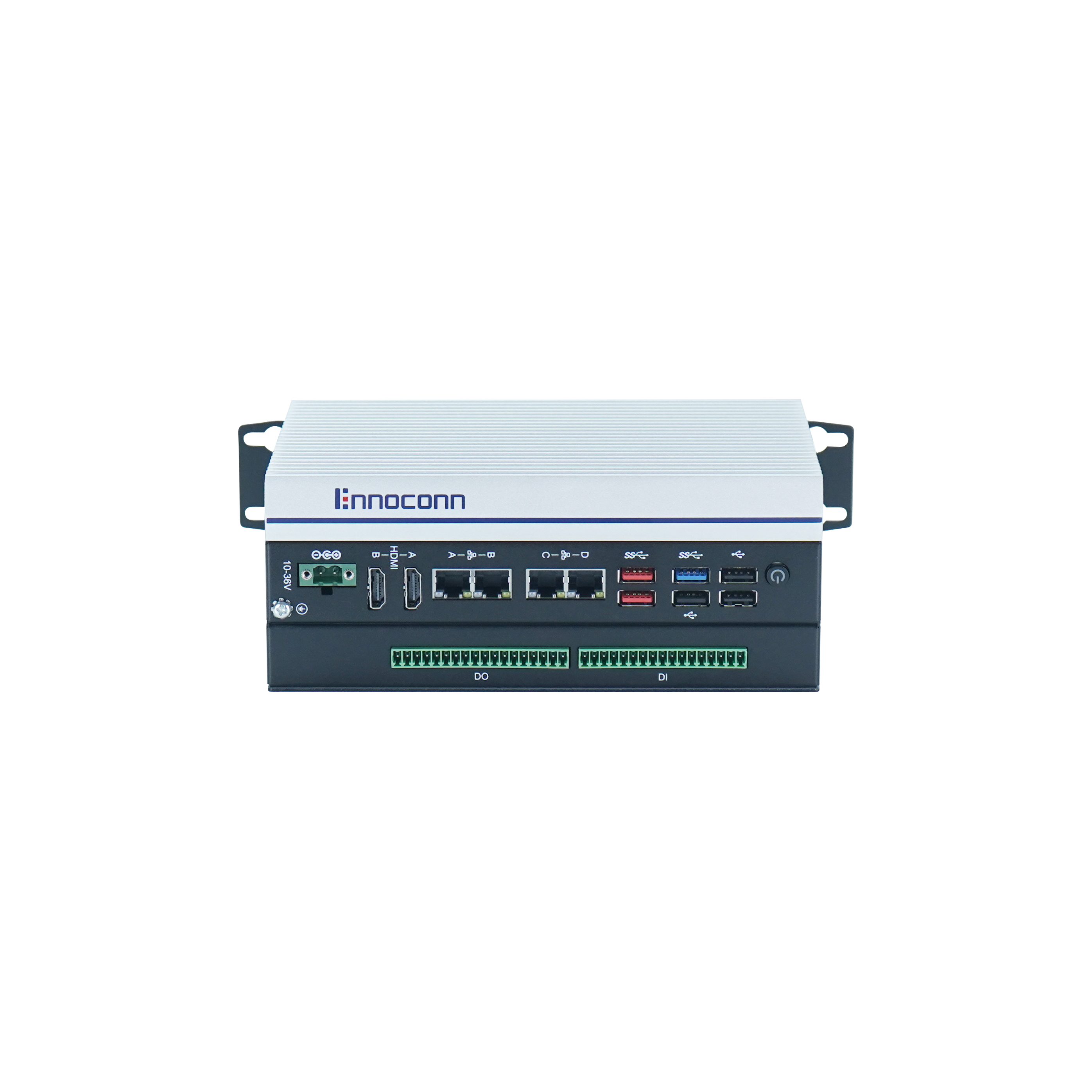

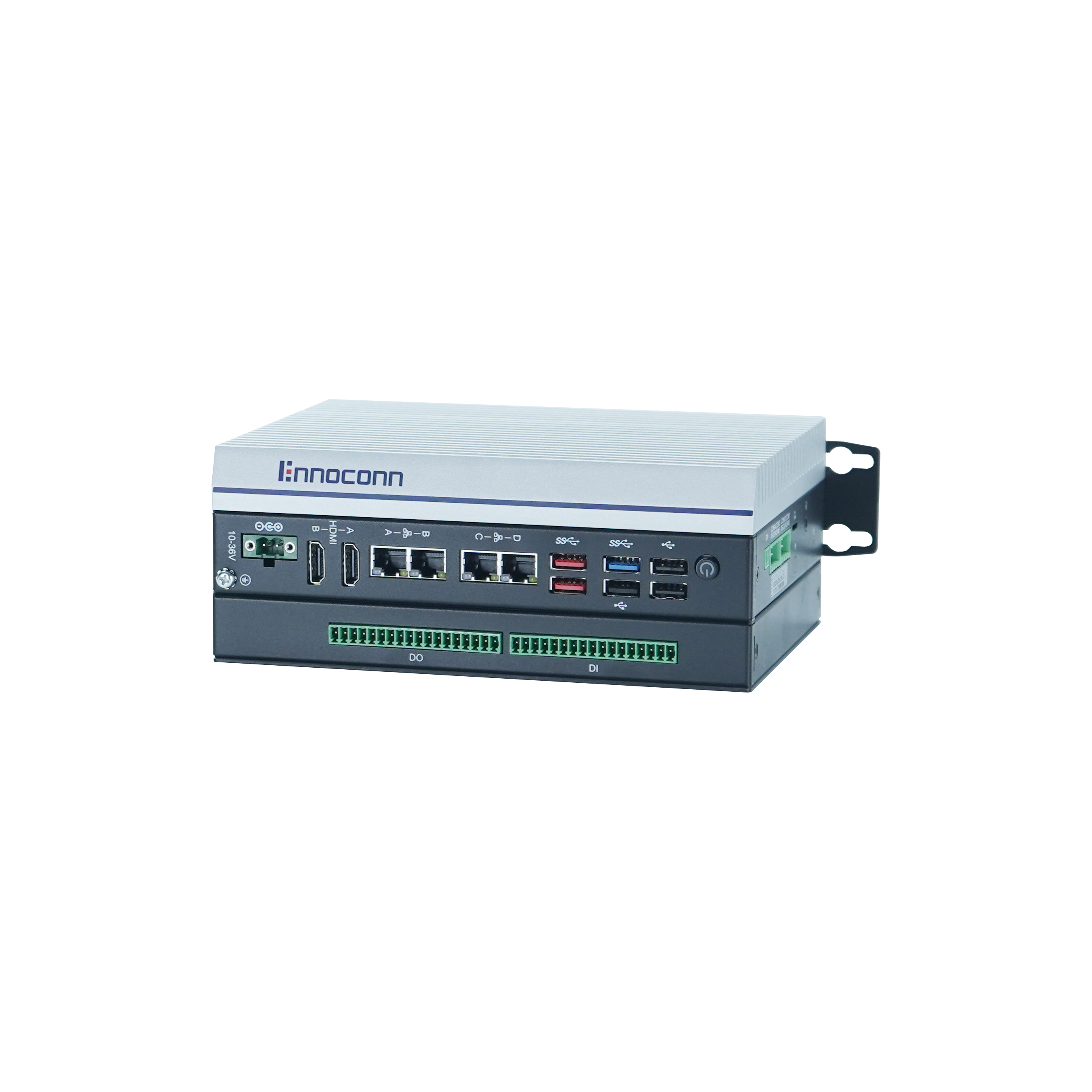

200*140*55.7mm (基础层） 200*140*79.5mm（两层） |
|
重量 Weight |
1.8KG |
认证 Certification
|
安规认证 Safety Certification |
CCC, CE, FCC |
