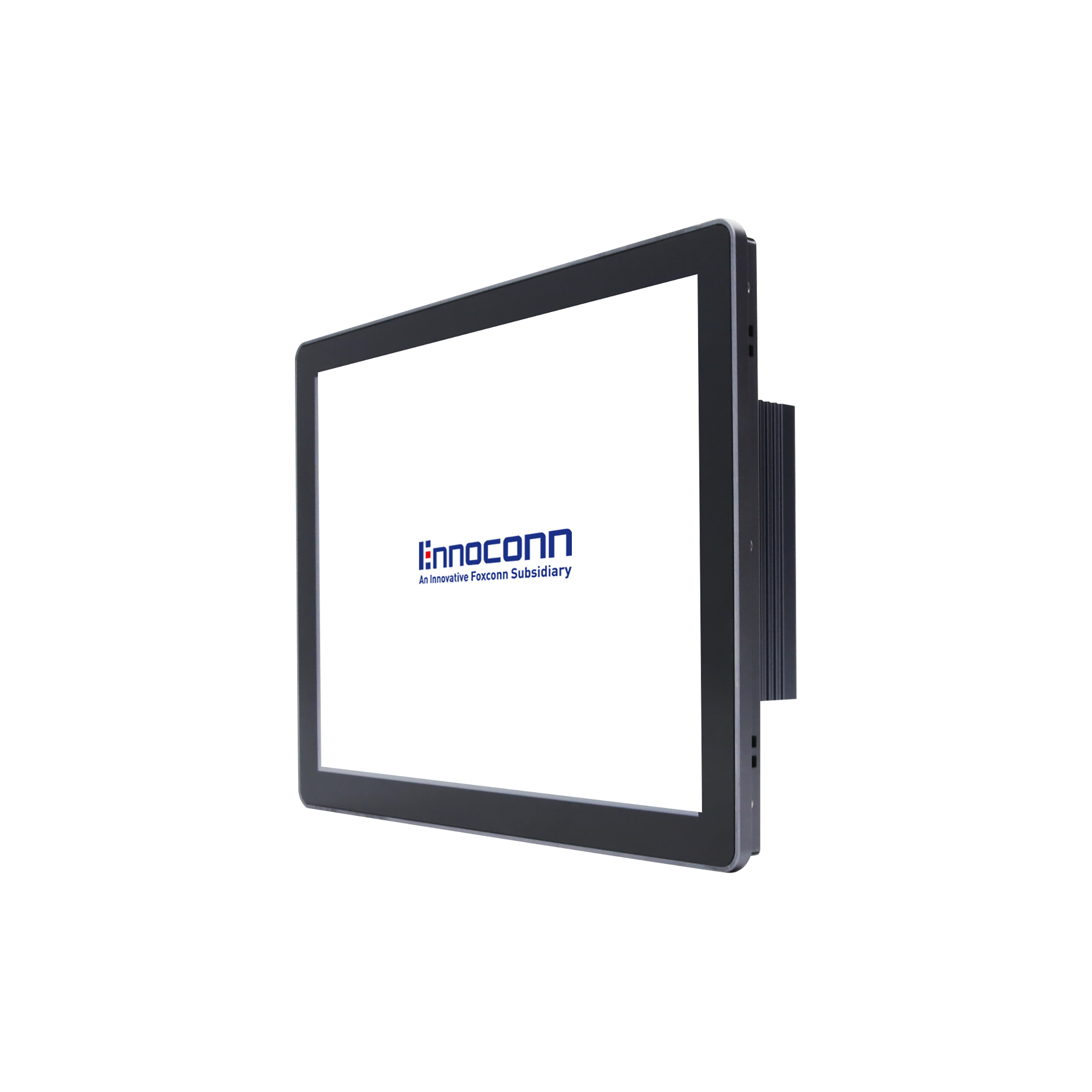

CEP-15RW-610A-VW
产品特性
板载Intel® Skylake Core™ i3-6100U处理器，主频为2.3GHz
15英寸 LED背光显示屏，前面框支持IP65防护等级
铝合金的机身使其轻薄、坚固稳定、散热效果更好
工业等级五线全平面电阻触摸屏
内置Mini-PCIe/M.2支持多种模块扩展
支持双千兆网口
宽压9~36V DC-IN，可锁附凤凰端子接口
支持远程开关
产品外壳接地保护
内置1 x 2.5寸HDD/SSD可扩充支架
支持标准VESA及嵌入式安装方式
产品规格
系统 System
|
处理器 Processor |
Intel 6th Gen. Core i3-6100U processor (2.30GHz) |
|
内存 Memory |
1 x DDR4 1866/2133MHz SO-DIMM, up to 16 GB |
|
存储 Storage |
1 x 2.5" Drive Bay for SATA3.0 HDD/SSD 1 x M.2 2242 SSD slot, 1 x mSATA |
|
图形 Graphics |
Intel? HD Graphics 520 |
|
操作系统 OS |
Windows 7/8.1/10, Linux |
|
看门狗定时器 Watchdog Timer |
Programmable 255 levels timer interval, from 1~255 sec/min |
显示屏 Display
|
尺寸 Size |
15 inches |
|
分辨率 Resolution |
1024(H) x 768(V) |
|
屏幕宽高比 Ratio |
4:3 |
|
亮度 Brightness |
300 nits |
|
可视角 Viewing Angle |
80°(T)/80°(B) 80°(L)/80°(R) |
|
对比度 Contrast Ratio |
800 |
|
背光 Backlight |
LED Backlight |
|
背光寿命 Backlight Lifetime |
30000Hrs |
触摸屏 Touchscreen
|
触摸屏 Touch Type |
全平面五线电阻屏 5-Wire Resistive Touch |
|
触击 Touch |
35,000,000 times |
外部接口 External I/O
|
串口 COM |
2 x RS232/RS422/RS485(COM1~2) 2 x RS232(COM3 & COM4) |
|
USB |
2 x USB 2.0, 2 x USB 3.0 |
|
网口 Ethernet |
1 x RJ45 Intel? I211AT (10/100/1000 Mbps) 1 x RJ45 Intel? I219-LM GbE (10/100/1000 Mbps) |
|
显示 Video |
1 x HDMI (up to 4096 x 2160) |
|
音频 Audio |
1 x Audio(Line-out&Mic-in 2 in 1), Realtek? ALC269 HD Audio codec |
|
远程开关 Remote ON-OFF |
1 x Remote ON-OFF |
|
电源输入 Power Input |
1 x Power Connector (2P Phoenix) |
内部接口 Internal I/O
|
扩展接口 Expansion |
1 x Mini-PCIe slot (PCIe/SATA signal supported) 1 x M.2 2242 slot (PCIe/SATA signal supported) 1 x M.2 2230 slot (WiFi supported) 1 x SIM socket |
机构 Mechanical
|
前框 Front Panel |
铝 Aluminum |
|
铝挤 Heat-Sink |
铝 Aluminum |
|
底板 Rear Cover |
铁 SECC |
|
安装方式 Mounting |
Panel Mount, Wall and VESA-mount (75 x 75mm) |
|
尺寸 Dimension |
351.6(W) x 275.6(H) x 68.4(D)mm |
|
建议开孔尺寸Cut Out |
341.4 x 265.4mm |
|
重量 Weight |
4.2kg |
环境 Environmental
|
操作温度 Operation Temp. |
-10℃ ~ 50℃ (SSD), 0℃ ~ 40℃ (HDD) |
|
存储温度 Storage Temp. |
-40℃ ~ 70℃ |
|
湿度 Relative Humidity |
5% ~ 95%, 非凝结状态 Non-condensing |
|
随机振动 Random Vibration |
5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation |
|
正弦振动 Sine Vibration |
5~500Hz, 2G Non-operation |
|
机械冲击 Shock |
10g 11ms operation, 30g 11ms Non-operation |
|
前面板防护 Ingress Protection |
Front panel IP65 |
电源 Power
|
电源输入 Power Input |
9~36V DC |
认证 Certification
|
安规认证 Safety Certification |
CCC, CE, FCC |
