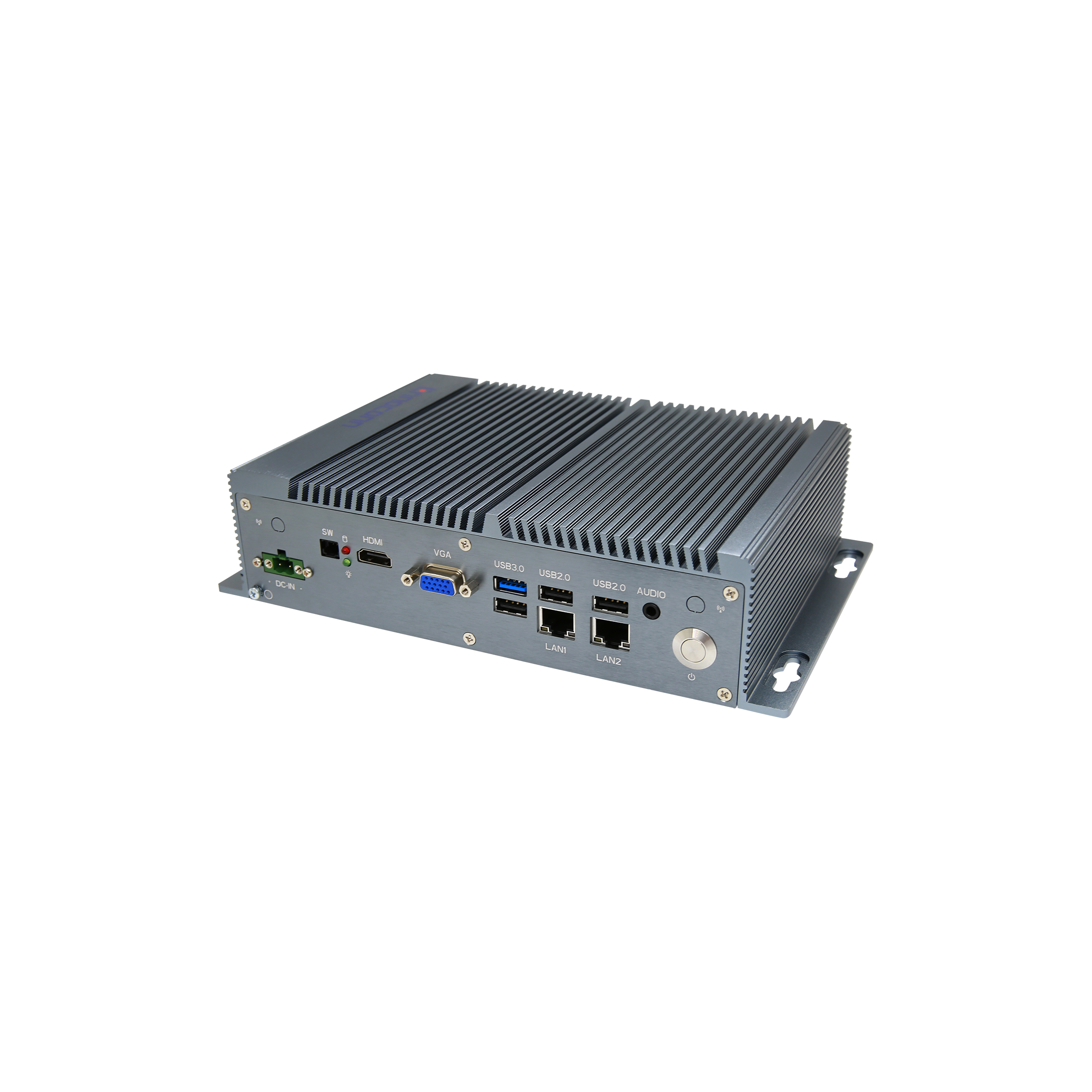

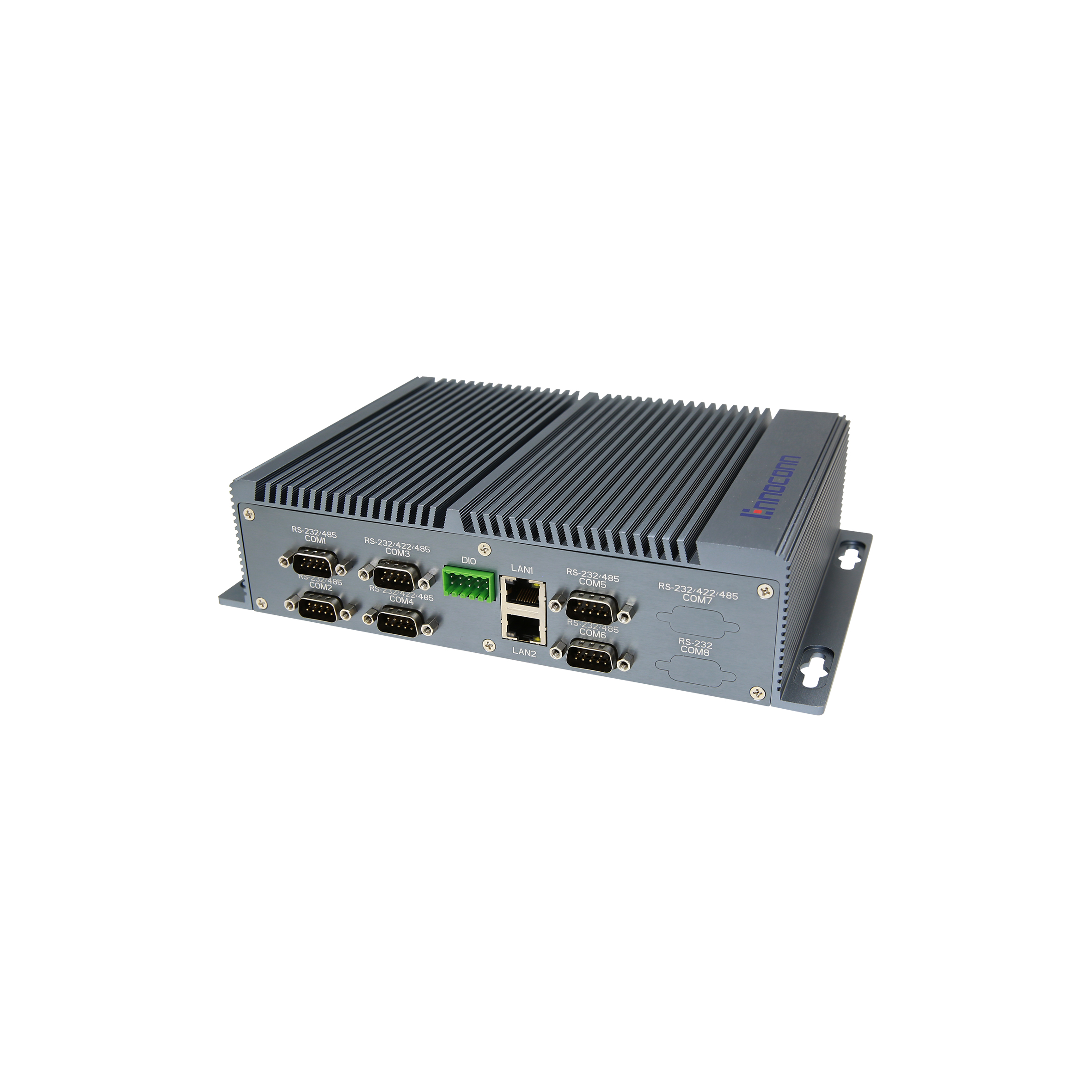

CES-RJ19-W46A
产品介绍
Intel®Bay Trail J1900 CPU,quad-core,TDP 10W, up to 4 x LAN, 6 x COM, 4 x USB，9-36V power input，fan-less system
产品特性
板载Intel® Celeron® J1900高性能低功耗四核处理器，主频最大可以达到2.0GHz
支持单通道DDR3L 1333 SO-DIMM内存插槽，内存容量最大可达8GB
最大支持四个千兆网口
支持VGA/HDMI多扩展显示
内置1 x 2.5寸HDD/SSD可扩充支架
内置1 x Mini-PCIe及1 x M.2 支持多种模块扩展
9~36V宽压设计，可锁附DC-IN接口
产品规格
规格Specification
|
系统 System |
||
|
处理器 Processor |
Intel® Bay Trail Celeron® J1900 processor (2.00 GHz) |
|
|
内存 Memory |
1 x DDR3L 1333 MHz SO-DIMM Slot, up to 8GB |
|
|
图形 Graphics |
Intel® HD Graphics for Intel Atom® Processor Z3700 Series, dual display |
|
|
存储 Storage |
1 x 2.5" SATA 2.0 HDD/SSD bay |
|
|
操作系统 OS |
Windows 7/8/10, Linux |
|
|
看门狗定时器 Watchdog Timer |
Programmable 255 levels timer interval, from 1~255 sec/min |
|
|
|
|
|
|

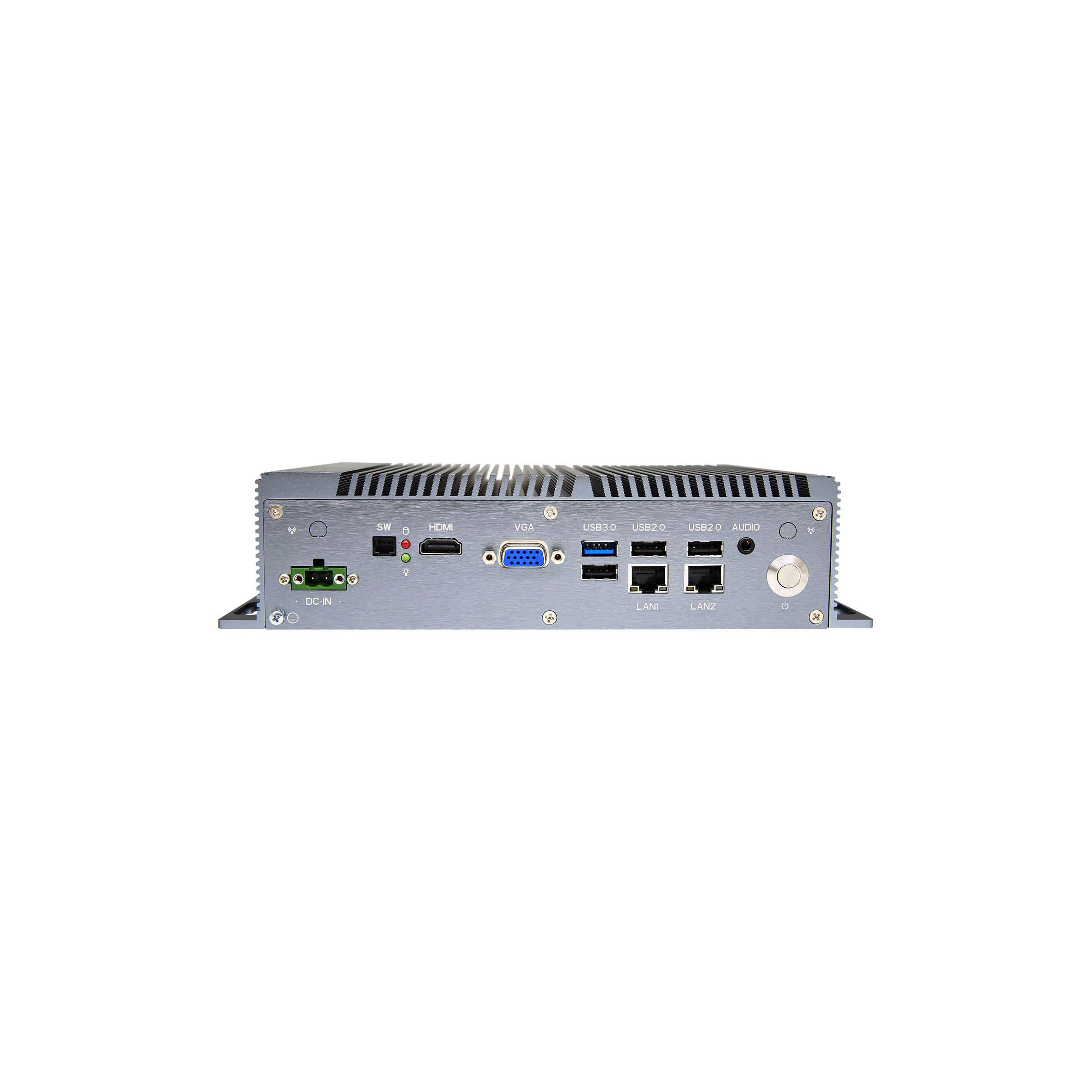

外部接口 External I/O |
||
|
网口 Ethernet |
4 x RJ45 Intel® i211AT GbE (10/100/1000 Mbps) |
|
|
显示 Video |
1 x VGA: max resolution up to 2560 x 1600 |
|
|
音频 Audio |
1 x Audio(Line-out&Mic-in 2 in 1), Realtek® ALC269 HD Audio codec |
|
|

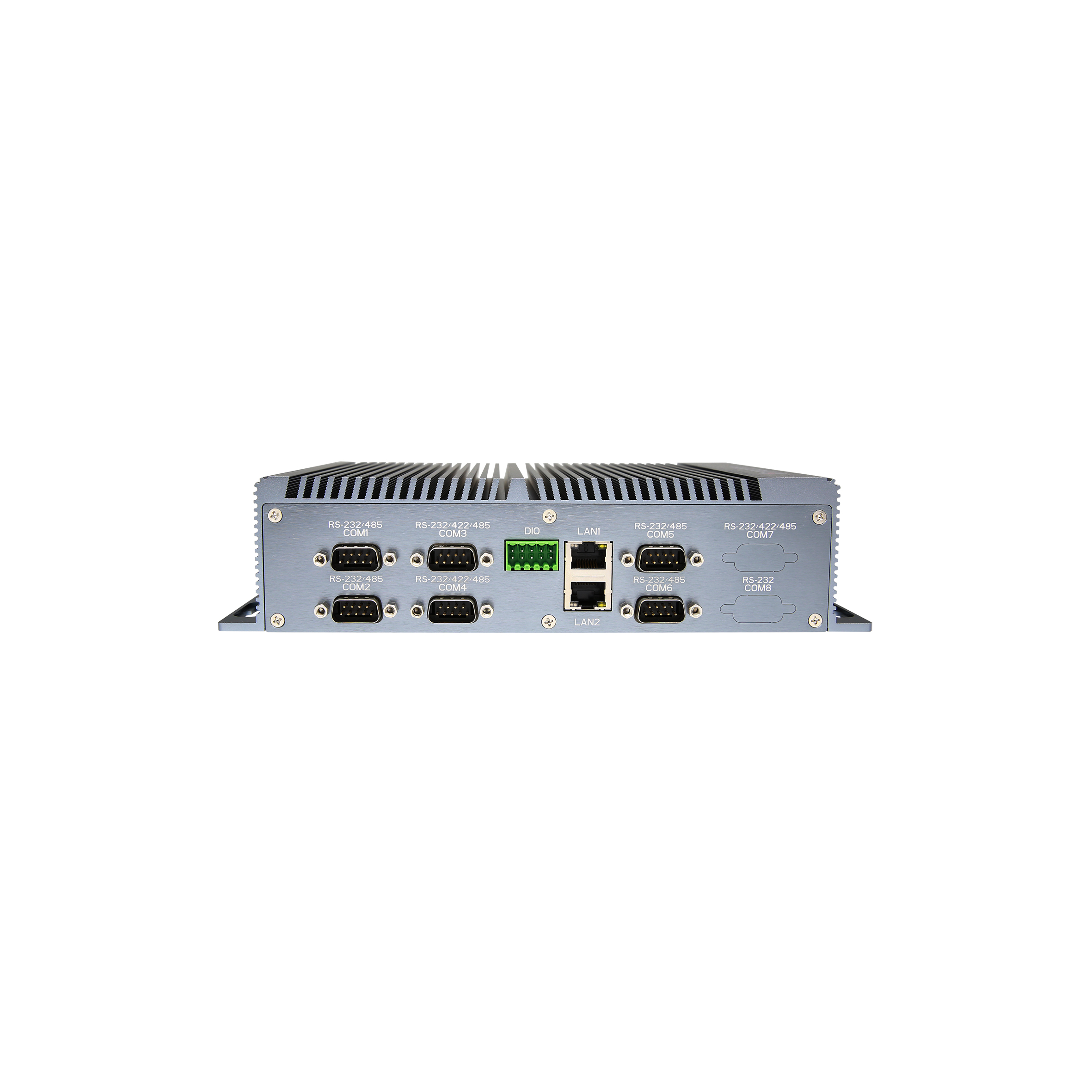

串口 COM |
3 x RS232/422/485 (1 x RS232/422/485 optional) |
|
|
USB |
1 x USB3.0, 4 x USB2.0 |
|
|
GPIO |
1 x 8bit programmable GPIO |
|
|
按钮 Button |
1 x Power button |
|
|
指示灯 LED |
1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) |
|
|
远程开关 Remote ON-OFF |
1 x Remote ON-OFF |
|
|
|
|
|
|
内部接口 Internal I/O |
||
|
扩展接口 Expansion |
1 x Mini-PCIe slot (PCIe/SATA signal supported) |
|
|
SIM卡 |
1 x SIM socket |
|
|
|
|
|
|
环境 Environmental |
||
|
操作温度 Operating Temp. |
-10℃ ~ 60℃(SSD), 0℃ ~ 0℃(HDD) |
|
|
存储温度 Storage Temp. |
-40℃ ~ 85℃ |
|
|
湿度Relative Humidity |
5% ~ 95%, 非凝结状态Non-condensing |
|
|
振动 Vibration |
SSD: 5~500Hz, 2Grms operation |
|
|
机械冲击 Shock |
Operation: 10G@11ms |
|
|
|
|
|
|
电源 Power |
||
|
电源输入 Power Input |
9~36V DC, 2-pin phoenix connector |
|
|
|
|
|
|
机构 Mechanical |
||
|
外观 Housing |
铝合金 Aluminum Alloy |
|
|
安装方式 Mounting |
Desk-Mount, Wall-Mount,VESA-mount (75 x 75mm,100 x 100mm optional), DIN-Rail(optional) |
|
|
尺寸 Dimension |
244 x 153 x 57.5 mm |
|
|
重量 Weight |
1.9kg |
|
|
|
|
|
|
认证 Certification |
||
|
安规认证 Safety Certification |
CCC |
|
|
|
|
|
|
■ 配置Configuration |
|
|
|
型号 Model |
LAN |
USB |
|
CES-RJ19-W26A |
2 |
6 |
|
CES-RJ19-W46A |
4 |
4 |
