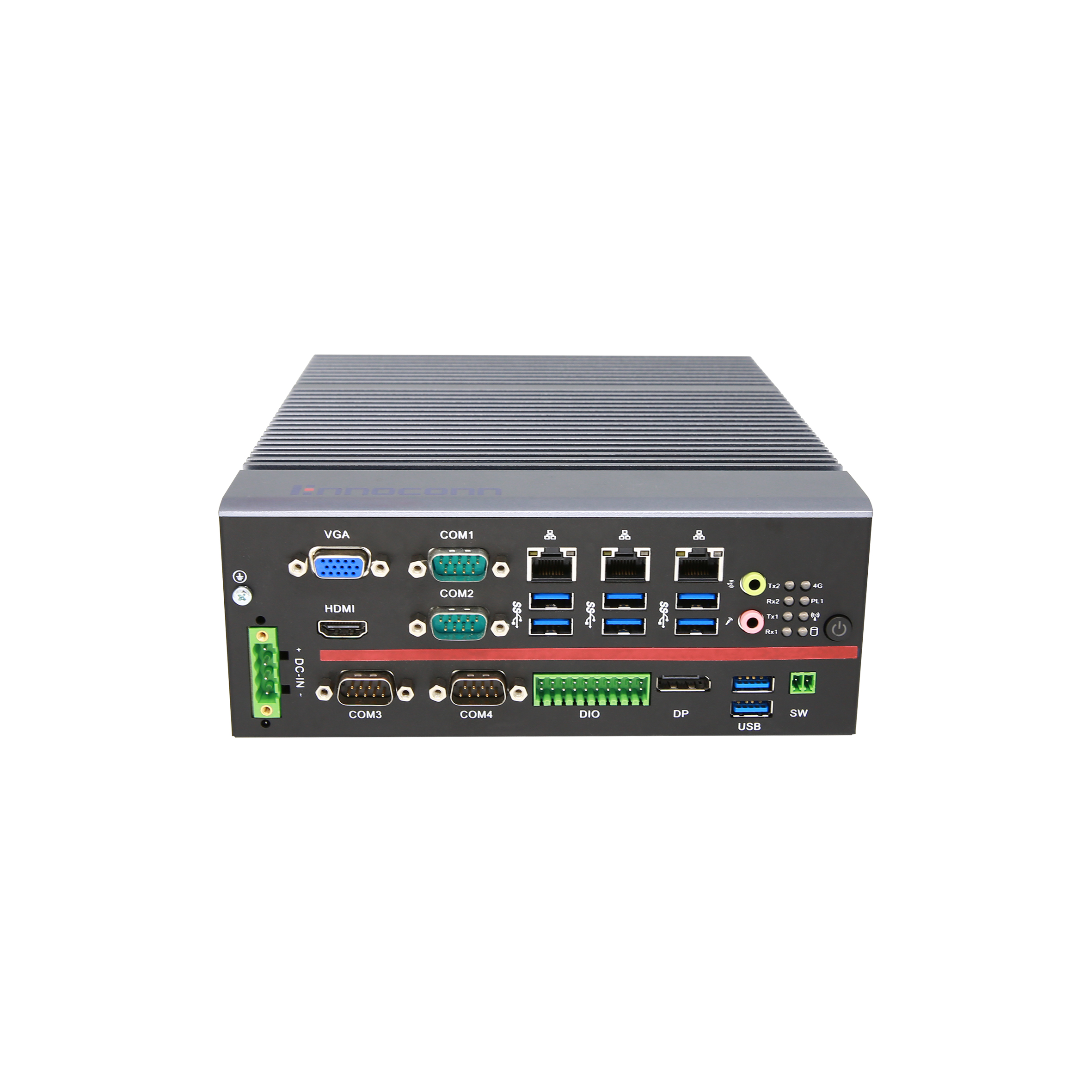

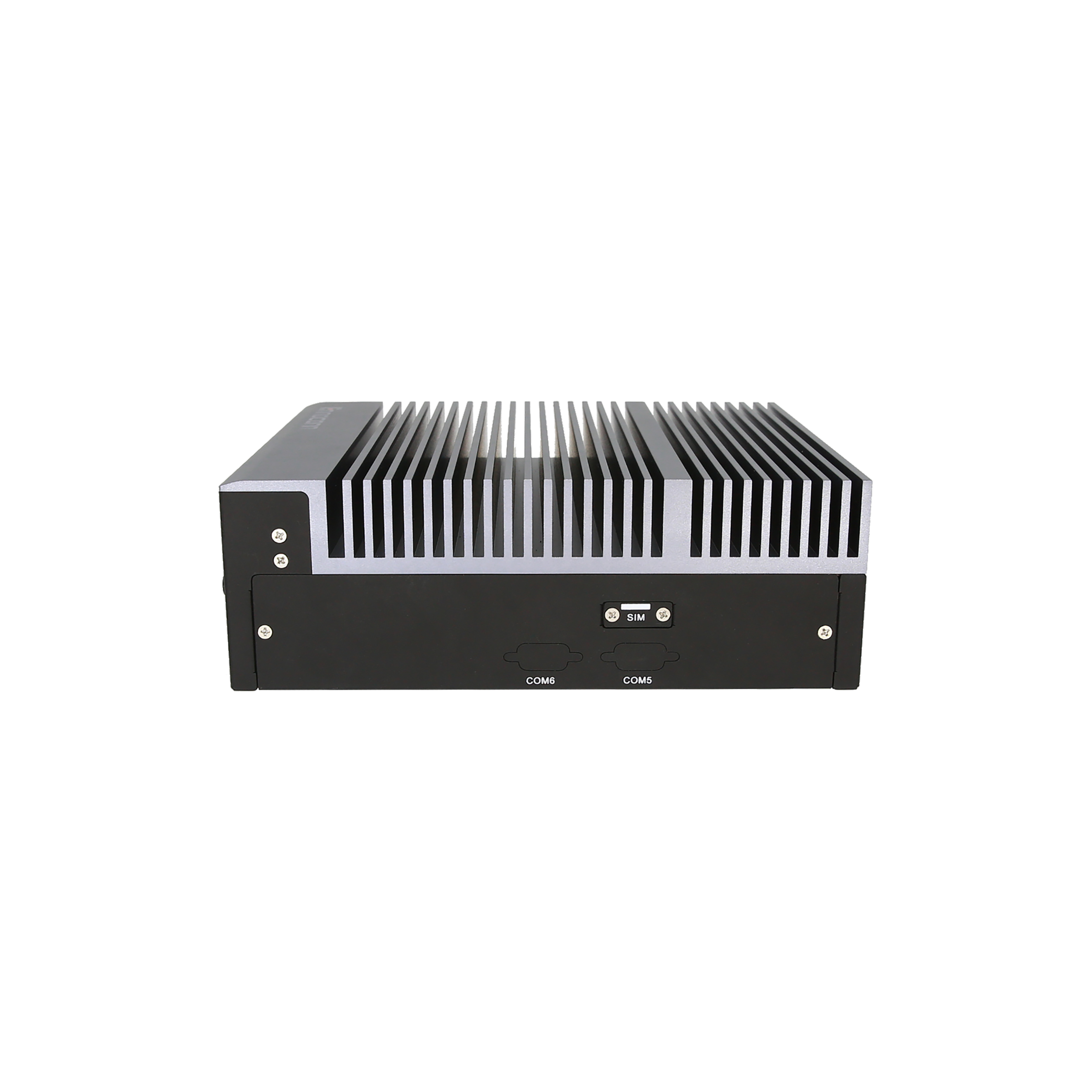

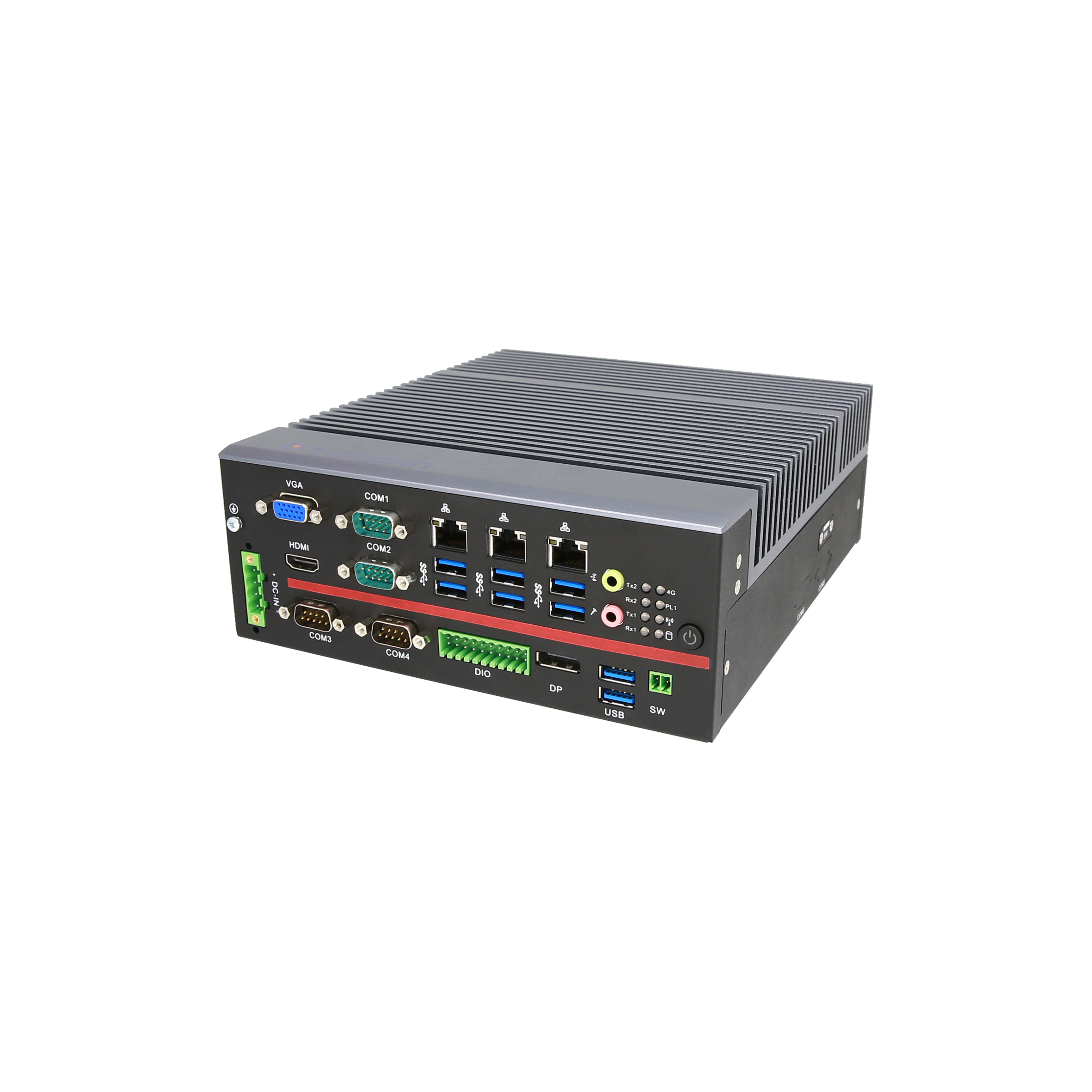

CES-EQ17-D340

产品介绍

Intel® Skylake-S/Kabylake-S series LAG1151Pentium/Celeron/Core processor, Q170 chipset,3 x LAN, up to 6 x COM ,10 x USB,16bit DIO, Optional 9-36V power input, fanless system



产品特性

采用Skylake-S/Kabylake-S系列LGA1151奔腾/赛扬/酷睿处理器,搭载Q170芯片组
支持双通道DDR4 2133MHz SODIMM内存插槽,内存容量最大可达32GB
支持三个千兆网口
支持VGA,HDMI及DP++ 三显
内置2 x 2.5寸HDD/SSD支架
内置1 x Mini-PCIe/mSATA槽,1 x M.2 2230 wifi卡槽及1 x M.2 2242扩展槽,支持多种模块扩展
内置1 x M.2 3042/3052可选卡槽,可扩展5G模块
内置1 x 内置USB2.0接口,可接加密狗
可支持PCIe X16,PCIe X8,PCIe X4,PCIe X1及PCI扩展插槽
标准19-24V DC电源输入,可选宽压9-36V DC-IN



产品规格

规格Specification

系统 System

  处理器 Processor

  Intel® 6th/7th Gen. Pentium®, Celeron®, Core™ i3/i5/i7 Processor, LGA1151 Socket, up to 65W

  芯片组 Chipset

  Intel Q170 Chipset

  内存 Memory

  2 x DDR4 2133MHz SO-DIMM, Up to 32GB

  图形 Graphics

  Intel® HD Graphics 530/510 (Intel 6th Gen. CPU)
  Intel® HD Graphics 630 (Intel 7th Gen. CPU)

  存储 Storage

  2 x 2.5" SATA 3.0 HDD/SSD Bay, support RAID0/1
  1 x mSATA slot
  1 x M.2 2242 SSD slot

  操作系统 OS

  Windows 7/8/10, Linux

  看门狗定时器 Watchdog Timer

  Programmable 255 levels timer interval, from 1~255 sec/min







外部接口 External I/O

  网口 Ethernet

  2 x RJ45, Intel® i211AT GbE (10/100/1000 Mbps)
  1 x RJ45, Intel® I219LM GbE (10/100/1000 Mbps)

  显示 Video

  1 x VGA: max resolution up to 1920 x 1200
  1 x HDMI: max resolution up to 4096 x 2160
  1 x DP++: max resolution up to 4096 x 2304

  音频 Audio

  1 x Line-out, 1 x Mic-in, Realtek® ALC269 HD Audio codec

  串口 COM

  4 x RS232/422/485 auto-flow
  2 x RS232 (optional by internal pin head)

  USB

  8 x USB3.0, 1 x internal USB2.0(Type-A), 2 x USB2.0 pin head

  GPIO

  1 x 16bit programmable GPIO (default 3.3V, 5V optional)

  按钮 Button

  1 x Power button

  指示灯 Indicators

  1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off)
  1 x HDD LED (Yellow blink for Data read or write)
  2 x COM1 LED for Rx1 and Tx1
  2 x COM2 LED for Rx2 and Tx2
  1 x Wifi communication LED (Green blink for communication)
  1 x 4G communication LED (Green blink for communication)
  1 x PL1 for user defination (can indicate CPU temperature, voltage dectact, etc)

  远程开关 Remote ON-OFF

  1 x Remote ON-OFF







内部接口 Internal I/O

  扩展接口 Expansion

  1 x Mini-PCIe slot  (PCIe/SATA signal supported)
  1 x M.2 2242 slot (PCIe/SATA signal supported)
  1 x M.2 2230 Key-E slot(Wifi module supported)
  1 x M.2 3042/3052 Key-B slot(5G communication module supported)

  SIM卡

  1 x 3G/4G SIM socket
  1 x 5G SIM socket







环境 Environmental

  操作温度 Operating Temp.

  -10℃ ~ 40℃ with 0.7m/s air flow (with 65W CPU and industrial SSD)
  -10℃ ~ 50℃ with 0.7m/s air flow (with 35W CPU and industrial SSD)
  0℃ ~ 30℃ with 0.7 m/s air flow (HDD)

  存储温度 Storage Temp.

  -40℃ ~ 85℃

  湿度 Relative Humidity

  5% ~ 95%, 非凝结状态Non-condensing

  振动 Vibration

  SSD: 5~500Hz, 2Grms operation
  HDD: 5~500Hz, 1Grms operation

  机械冲击 Shock

  Operation: 10G@11ms
  Non-operation: 30G@11ms







电源 Power

  电源输入 Power Input

  19-24V DC, 4-pin phoenix connector (9-36V DC optional with power board)







机构 Mechanical

  外观 Housing

  铝合金 Aluminum Alloy

  安装方式 Mounting

  桌面式 (Desk-Mount), 壁挂式 (Wall-Mount)

  尺寸 Dimension

  200 x 230 x 78 mm

  重量 Weight

  3.5kg







认证 Certification

  安规认证 Safety Certification

  CCC
