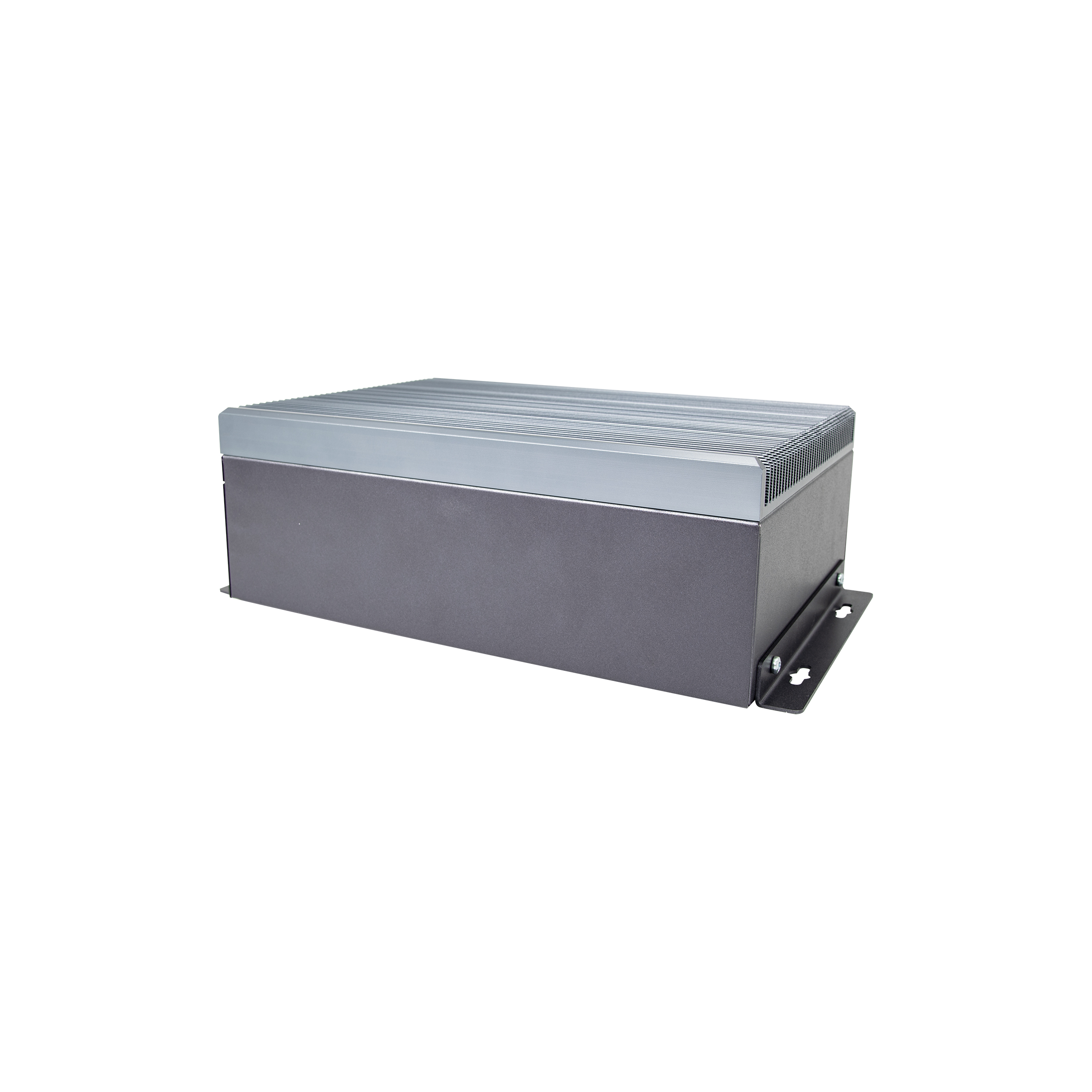

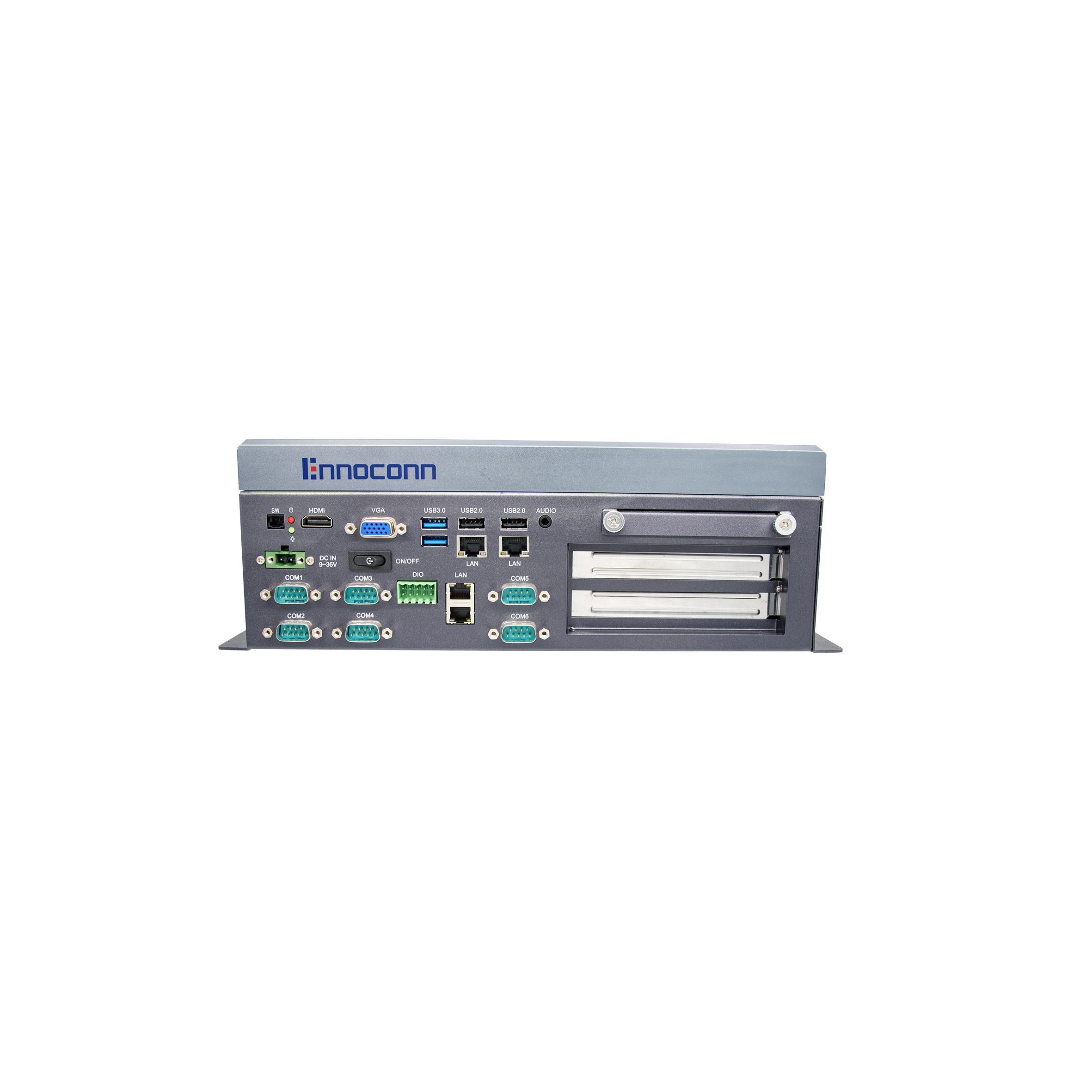

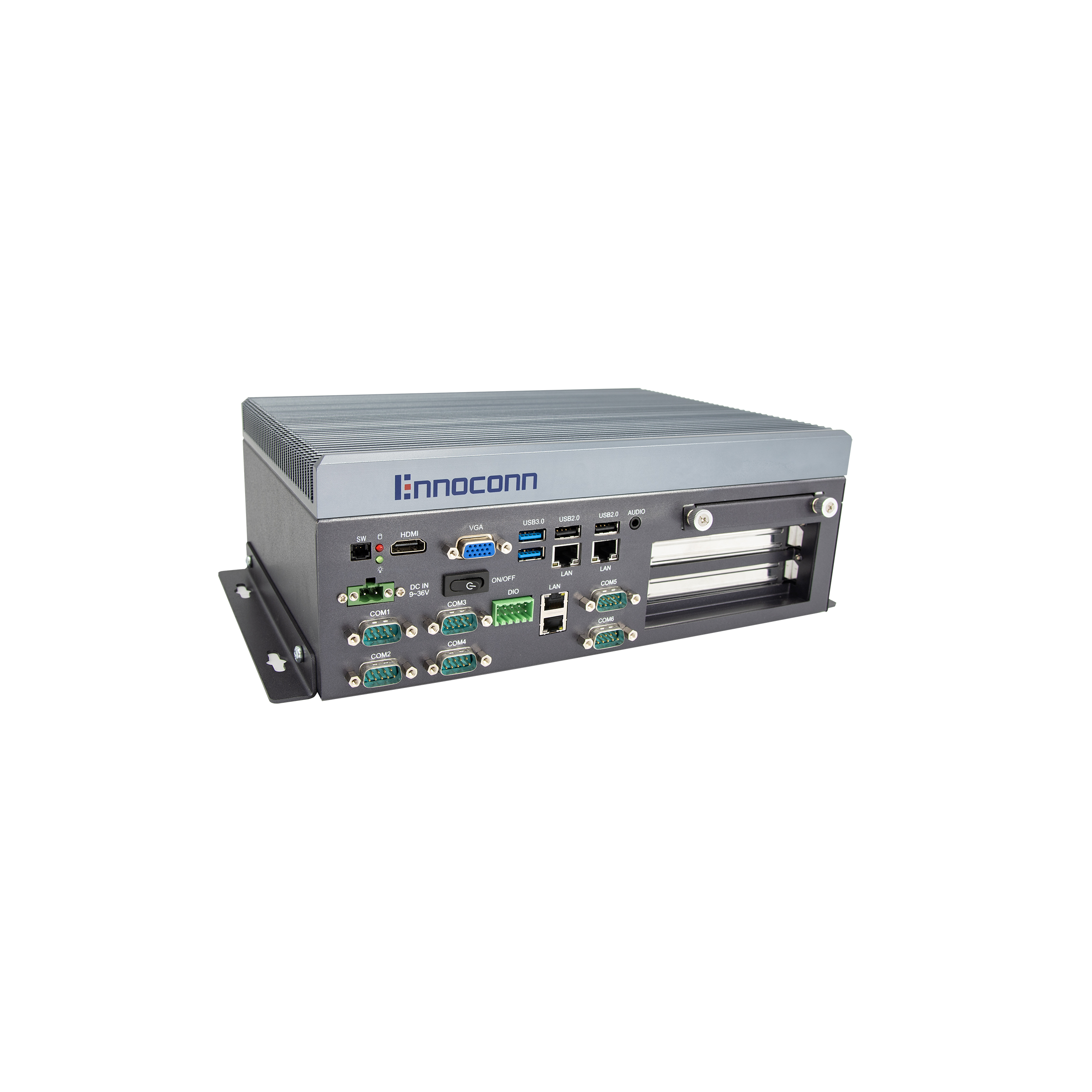

CES-E650-W46A
产品介绍
Intel® Skylake Core i7-6500U CPU, dual-core, TDP 15W, fanless, 4 x LAN, 6 x COM, 4 x USB，dual PCI extension slot, 9-36V power input，fanless system
产品特性
板载Intel® Skylake i7-6500U双核处理器，主频最大可以达到2.5GHz
支持单通道DDR4 1866/2133MHz SO-DIMM内存插槽，内存容量最大可达16GB
支持四个千兆网口
支持VGA+HDMI多扩展显示
内置1 x 2.5寸HDD/SSD可抽取式盒
内置1 x Mini-PCIe及2 x M.2支持多种模块扩展
支持2 x PCI 扩展插槽
宽压9-36V DC-IN，可锁附凤凰端子接口
产品规格
规格 Specification
|
系统 System |
||
|
处理器 Processor |
Intel® Core™ i7-6500U Processor (2.5GHz, up to 3.1GHz) |
|
|
内存 Memory |
1 x DDR4 1866/2133MHz SO-DIMM, up to 16 GB |
|
|
图形 Graphics |
Intel® HD Graphics 520, dual display |
|
|
存储 Storage |
1 x SATA 3.0 for 2.5" HDD/SSD |
|
|
操作系统 OS |
Windows 7/8/10, Linux |
|
|
看门狗定时器 Watchdog Timer |
Programmable 255 levels timer interval, from 1~255 sec/min |
|
|
|
|
|
|
外部接口 External I/O |
||
|
网口 Ethernet |
4 x RJ45 Intel® i211AT GbE (10/100/1000 Mbps) |
|
|
显示 Video |
1 x VGA: max resolution up to 1920 x 1200 |
|
|
音频 Audio |
1 x Line-out&Mic-in (2 in 1), Realtek® ALC269 HD Audio codec |
|
|
串口 COM |
2 x RS232/422/485 |
|
|
USB |
2 x USB2.0, 2 x USB3.0 |
|
|
GPIO |
1 x 8bit programmable GPIO |
|
|
按钮 Button |
1 x Power button |
|
|
指示灯 LED |
1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) |
|
|
远程开关 Remote ON-OFF |
1 x Remote ON-OFF |
|
|
|
|
|
|
内部接口 Internal I/O |
||
|
扩展接口 Expansion |
1 x Mini-PCIe slot (PCIe/SATA signal supported) |
|
|
SIM卡 |
1 x SIM socket |
|
|
|
|
|
|
环境 Environmental |
||
|
操作温度 Operating Temp. |
-20℃ ~ 60℃(SSD), 0℃ ~ 40℃(HDD) |
|
|
存储温度 Storage Temp. |
-40℃ ~ 85℃ |
|
|
湿度 Relative Humidity |
5% ~ 95%, 非凝结状态Non-condensing |
|
|
振动 Vibration |
SSD: 5~500Hz, 2Grms operation |
|
|
机械冲击 Shock |
Operation: 10G@11ms |
|
|
|
|
|
|
电源 Power |
||
|
电源输入 Power Input |
9~36V DC, 2-pin phoenix connector |
|
|
|
|
|
|
机构 Mechanical |
||
|
外观 Housing |
铝合金 Aluminum Alloy |
|
|
安装方式 Mounting |
桌面式 (Desk-Mount), 壁挂式 (Wall-Mount) |
|
|
尺寸 Dimension |
290 x 200 x 105 mm |
|
|
重量 Weight |
3.5kg |
|
|
|
|
|
|
认证 Certification |
||
|
安规认证 Safety Certification |
CCC, CE, FCC |
|
|
|
|
|
|
■ 配置 Configuration |
|
|
|
型号 Model |
处理器 CPU |
|
|
CES-E610-W46A |
Intel® Core™ i3-6100U Processor (2.3GHz) |
|
|
CES-E620-W46A |
Intel® Core™ i5-6200U Processor (2.3GHz, up to 2.8GHz) |
|
|
CES-E650-W46A |
Intel® Core™ i7-6500U Processor (2.5GHz, up to 3.1GHz) |
|
