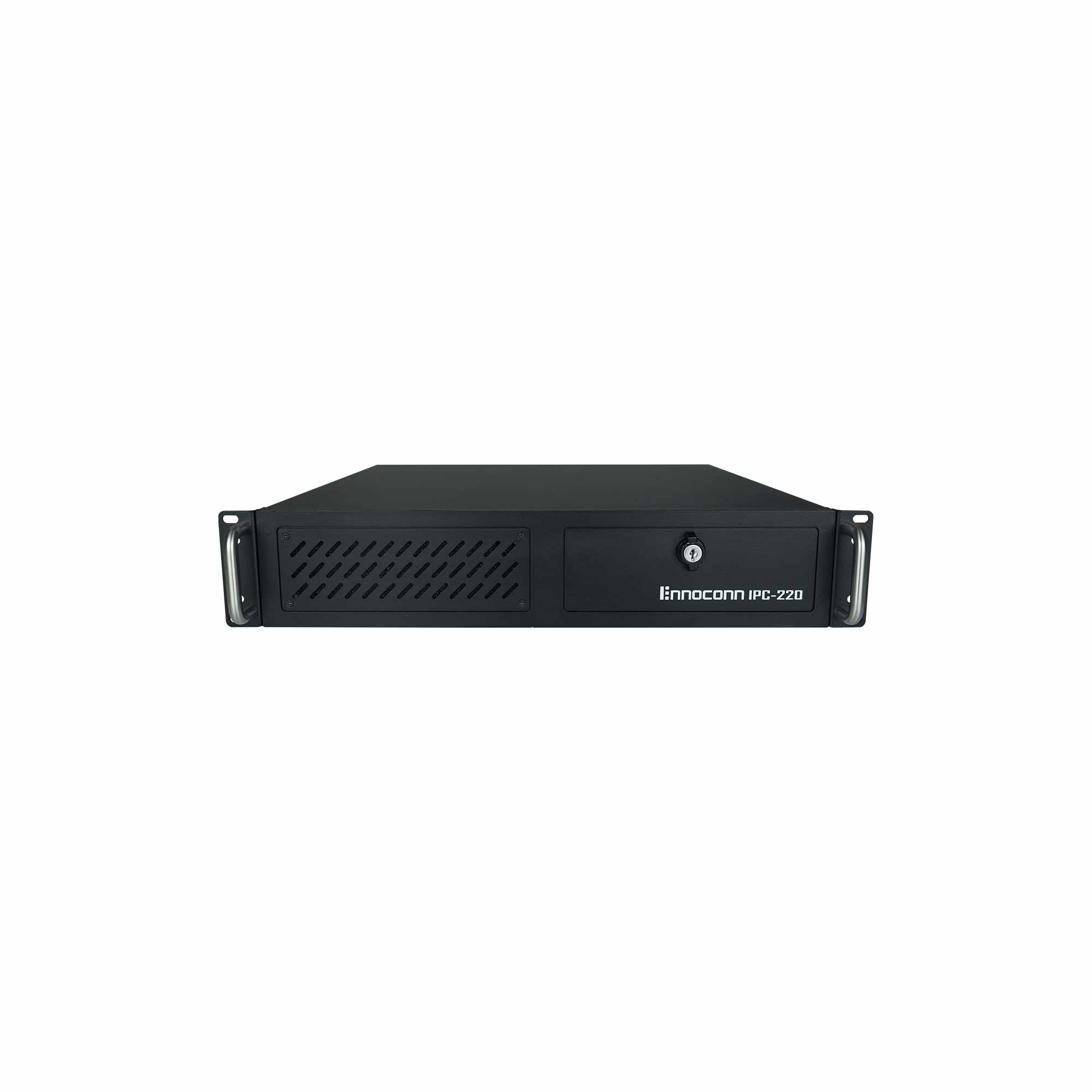

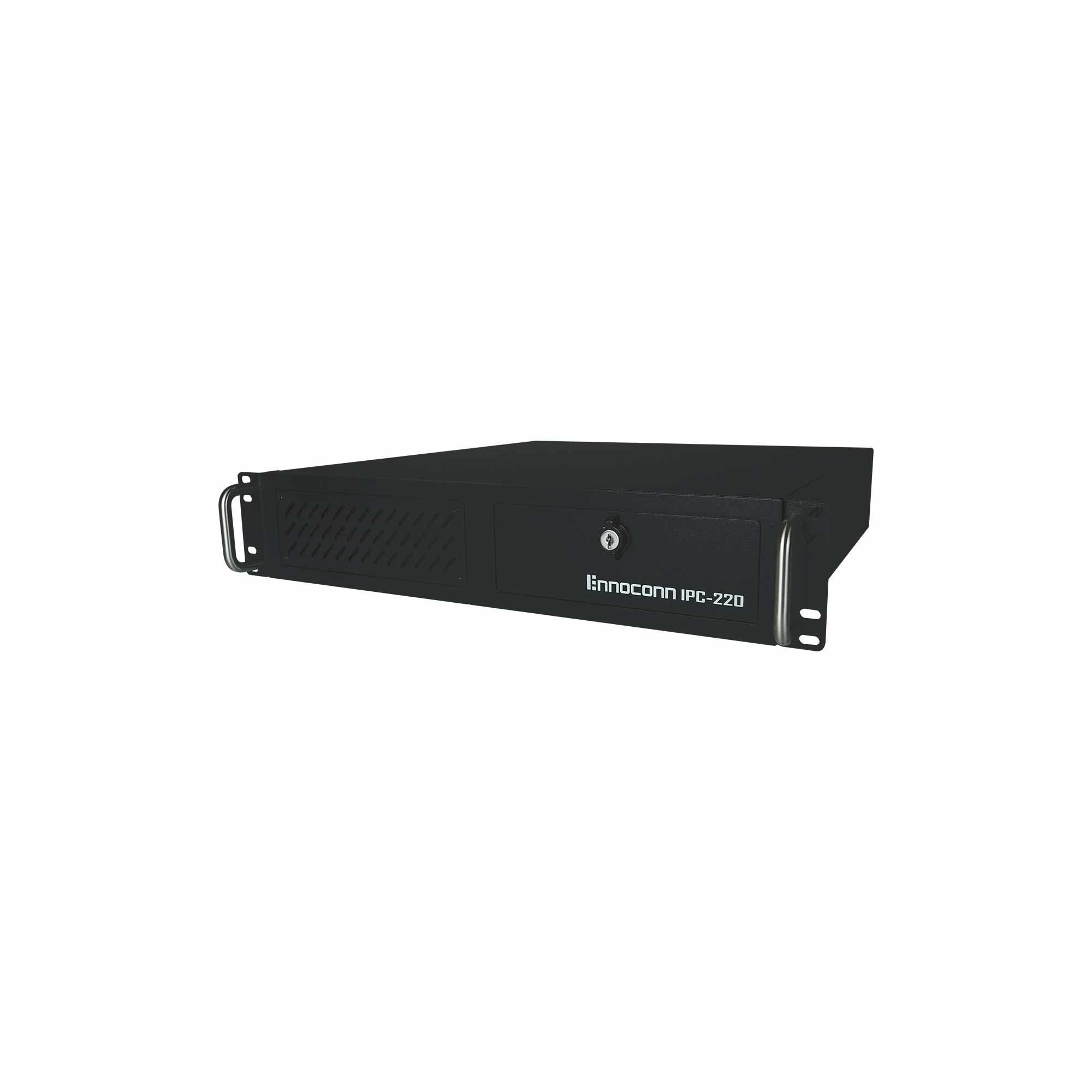

CEFS-RA22-H11A-2U
产品特性
Intel®6/7代酷睿 i7/i5/i3/奔腾®/赛扬®处理器, 功耗最高支援到95W
采用H110芯片组
支持双千兆网口
支持VGA, DVI-D双显功能
内置PCI、PCIe插槽，支持多种模块扩展
抗震动磁盘架设计，可支持2个3.5"HDD,1个2.5"SSD硬盘
前部可访问 USB接口，更易于数据传输
产品规格
系统 System
|
处理器 Processor |
Intel®6th/7th Core ™ i7/i5/i3/Pentium®/Celeron® Processor, LGA1151 Socket, TDP up to 95W |
|
芯片组 Chipset |
Intel® H110 |
|
内存 Memory |
Dual Channel, 2 x U-DIMM Slot, DDR4 1866/2133/2400MHz, up to 32GB |
|
图形 Graphics |
Intel® HD Graphics, dual display |
|
存储 Storage |
4 x SATA 3.0 |
|
操作系统 OS |
6th Gen CPU : Windows7/8.1/10, Linux 7th Gen CPU : Windows10, Linux |
|
看门狗 Watchdog Timer |
System Reset, Programmable via software from 1 to 255 seconds |
|
信赖平台模块 TPM |
Nuvoton TPM1.2/2.0(optional, need MOQ) |

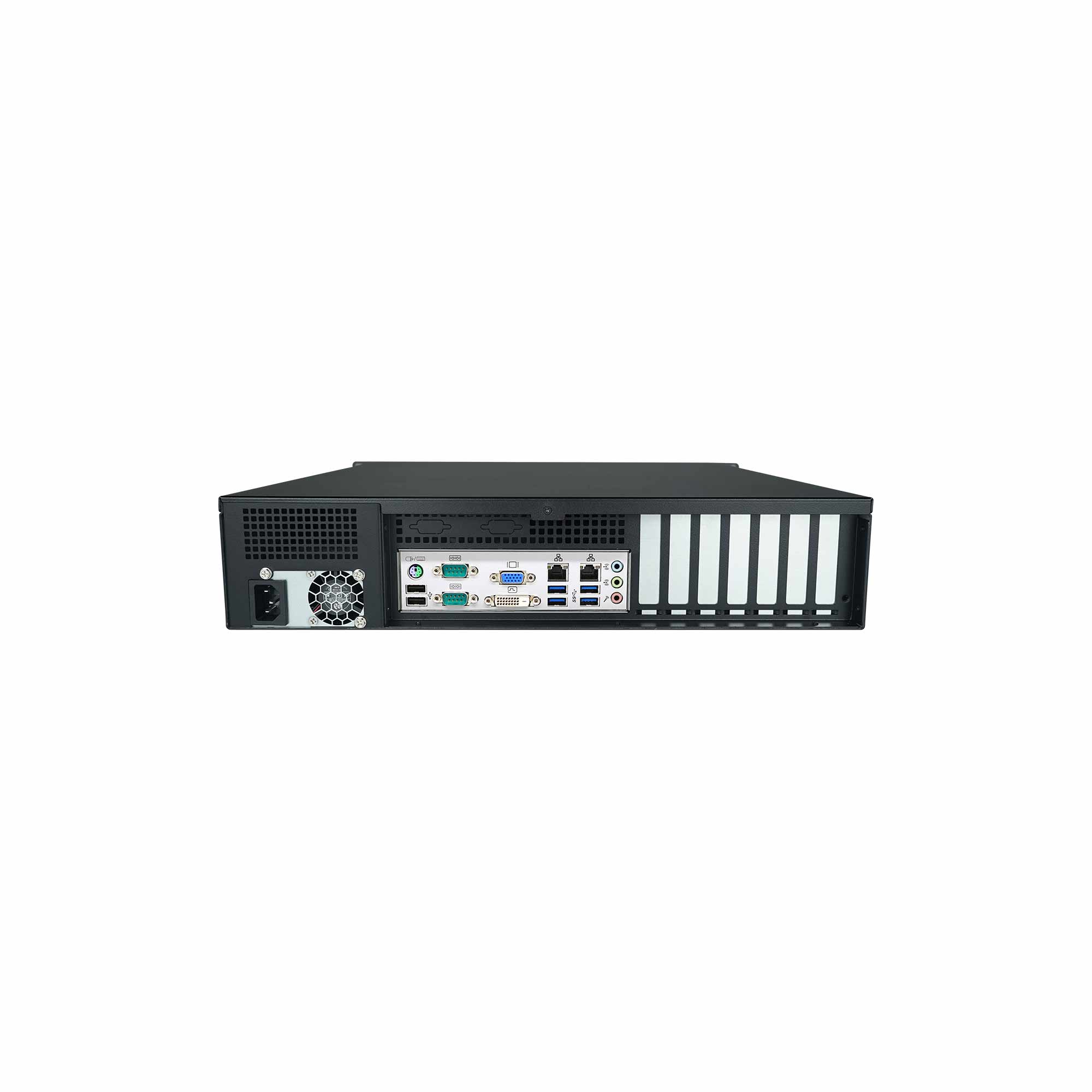

外部接口 External I/O
|
网口 Ethernet |
1 x RJ45 Intel® I211AT + 1 x RJ45 Intel® I219-LM GbE（10/100/1000 Mbps） |
|
显示 Video |
1 x DVI-D: max resolution up to 1920 x 1200@60Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz |
|
串口 COM |
2 x RS232/422/485 (with auto flow control) |
|
USB |
4 x USB 2.0, 4 x USB 3.0(Support Ennoconn USB SR Pro Technology) |
|
PS/2 |
1 x PS/2 (Keyboard and Mouse Supported) |
|
按钮 Button |
1 x Power Button, 1 x Reset Button |
|
指示灯 LED |
1 x Power LED, 1 x HDD LED |
内部接口 Internal I/O
|
扩展接口 Expansion |
1 x PCIe X16 (Gen3) Slot, 1 x PCIe X4 Slot, 5 x PCI Slot |
|
风扇 FAN |
1 x CPU Fan, 2 x System Fan |
|
USB |
2 x USB2.0 (Type-A share USB signal with one USB2.0) |
|
GPIO |
1 x 16 bit GPIO |
|
串口 COM |
2 x RS232, 2 x 232/485 |
环境 Environmental
|
操作温度 Operating Temp. |
0℃ ~ 40℃ |
|
存储温度Storage Temp. |
-20℃ ~ 60℃ |
|
湿度Relative Humidity |
5% ~ 95%, 非凝结状态Non-condensing |
|
随机振动 Random Vibration |
5~500Hz, 1Grms (HDD)operation |
|
正弦振动 Sine Vibration |
5~500Hz, 2G Non-operation |
|
机械冲击 Shock |
10G @ 11ms operation |
电源 Power
|
电源输入 Power Input |
100~240V(AC) |
|
电源功耗 Power Watt |
250W |
机构 Mechanical
|
外观 Housing |
SGCC |
|
尺寸 Dimension |
481.6(L) x 450.0(W) x 88.6(H)mm |
|
重量 Weight |
10kg( 约) |
|
安装方式 Mounting |
机柜式 (Rack-Mount) |
认证 Certification
|
安规认证 Safety Certification |
CCC |
