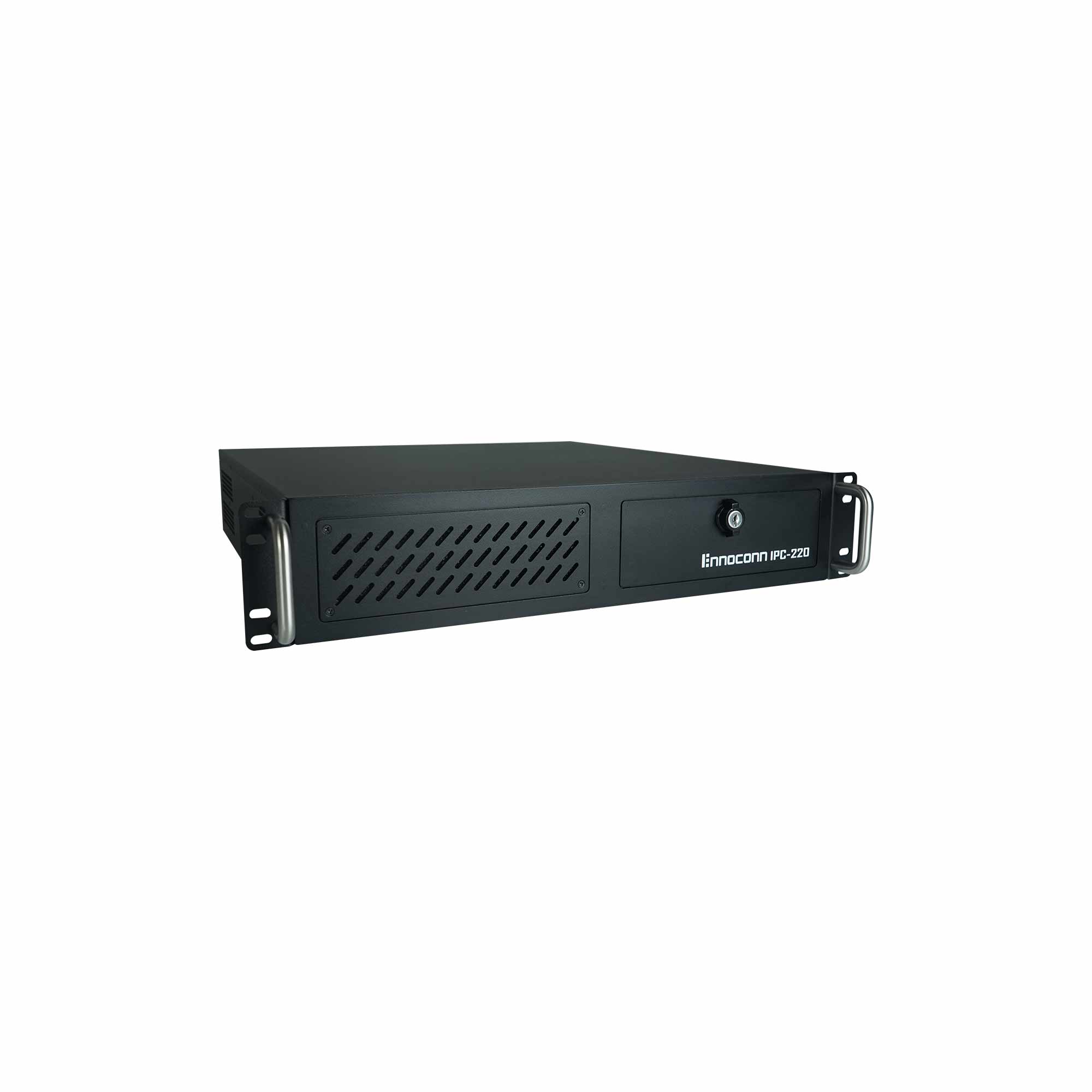

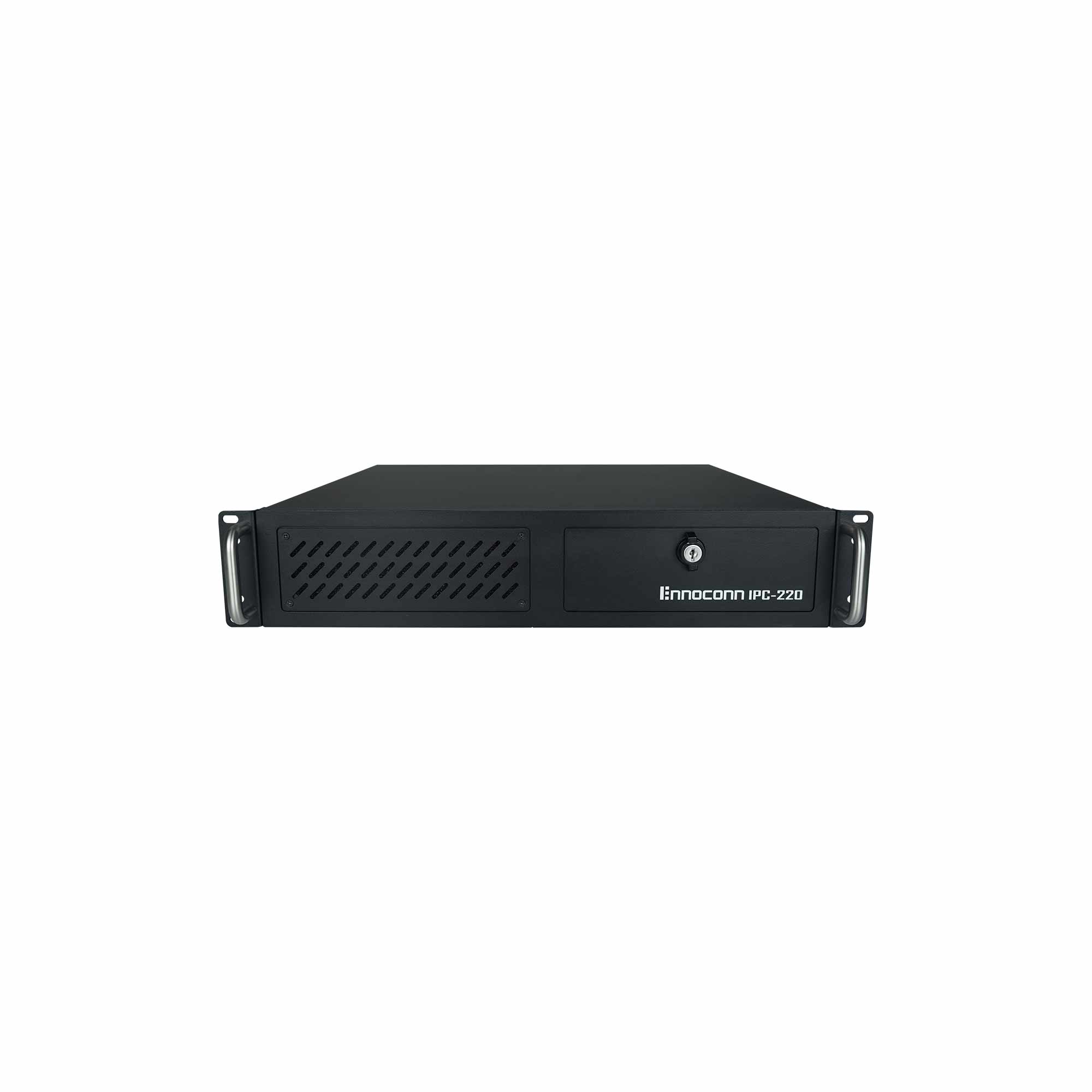

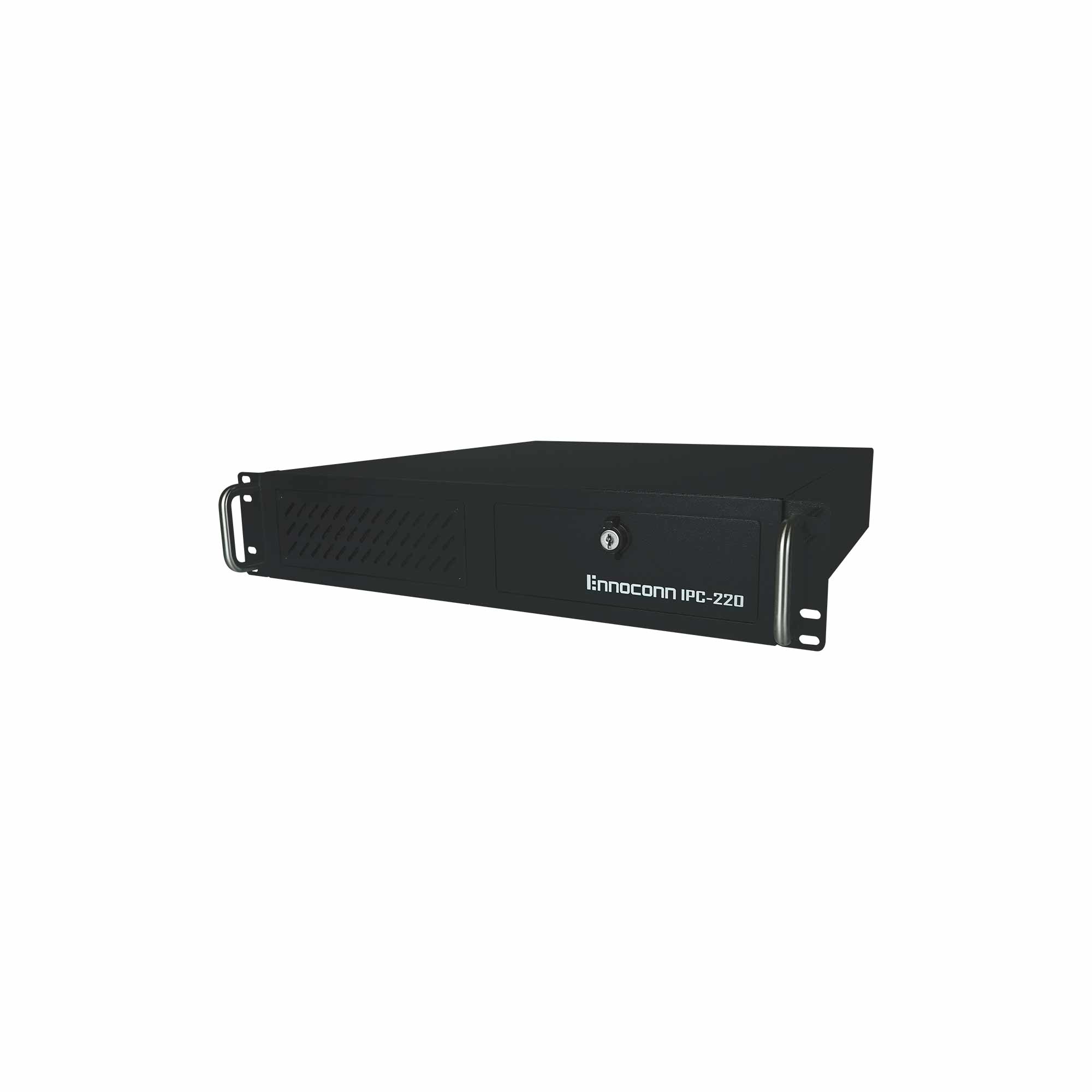

CEFS-RA21-Q17A-2U
产品特性
Intel®6/7代酷睿 i7/i5/i3/奔腾®/赛扬®处理器, 功耗最高支援到95W
采用Q170芯片组
支持双千兆网口
支持VGA、DVI-D、DP++三屏异显
内置PCI, PCIe插槽，支持多种模块扩展
抗震动磁盘架设计，可支持2个3.5"HDD,1个2.5"SSD硬盘
前部可访问 USB接口，更易于数据传输
海岸线上的USB端口支持Ennoconn USB SR Pro
产品规格
系统 System
|
处理器 Processor |
Intel® 6th/7th Gen Core ™ i7/i5/i3/Pentium®/Celeron® Processor, LGA1151 Socket, TDP up to 95W |
|
芯片组 Chipset |
Intel® Q170 Chipset |
|
内存 Memory |
Dual Channel, 4 x U-DIMM Slot, DDR4 2133/2400MHz , up to 64GB |
|
图形 Graphics |
Intel® HD Graphics, triple display |
|
存储 Storage |
4 x SATA3.0, 1 x M.2 2242/2280 (SATA3.0/PCIe3.0 supported) |
|
操作系统 OS |
6th Gen CPU : Windows7/8/10, Linux 7th Gen CPU : Windows10, Linux |
|
看门狗 Watchdog Timer |
System Reset, Programmable via software from 1 to 255 seconds |
|
信赖平台模块 TPM |
Nuvoton TPM1.2(optional, need MOQ) |

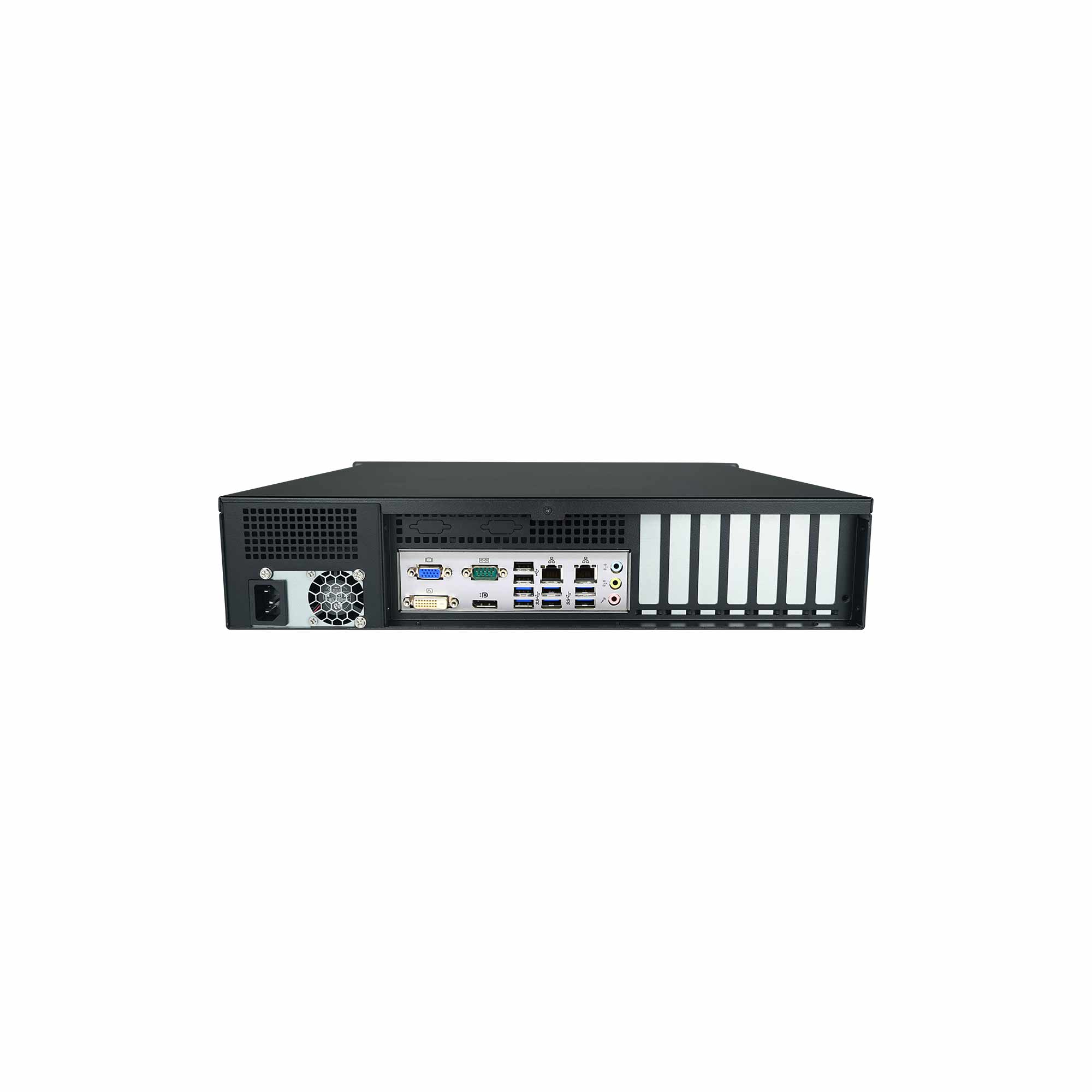

外部接口 External I/O
|
网口 Ethernet |
1 x Intel® i219-LM GbE, 1 x Intel® i211-AT (10/100/1000 Mbps) |
|
显示 Video |
1 x DVI-D: max resolution up to 1920 x 1200@60Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 1 x DP++: max resolution up to 4096 x 2304@60Hz |
|
串口 COM |
1 x RS232/422/485 (with auto flow control) |
|
USB |
6 x USB 3.0, 4 x USB 2.0 (Rear USB ports support Ennoconn USB SR Pro) |
|
按钮 Button |
1 x Power Button, 1 x Reset Button |
|
指示灯 LED |
1 x Power LED, 1 x HDD LED |
内部接口 Internal I/O
|
扩展接口 Expansion |
2 x PCIe X16 (Gen3, 1 x 16 or 2 x 8 link), 3 x PCIe X4 (X4 link) , 2 x PCI |
|
风扇 FAN |
1 x CPU Fan, 2 x System Fan |
|
USB |
3 x USB2.0 (Type-A share USB signal with one USB2.0) |
|
GPIO |
1 x 16-bit GPIO |
|
串口 COM |
1 x RS232/422/485, 2 x RS232/485, 2 x RS232 |
|
LPT |
1 x LPT |
|
PS/2 |
1 x PS/2 pinheader (keyboard and mouse) |
环境 Environmental
|
操作温度 Operating Temp. |
0℃ ~ 40℃ |
|
存储温度Storage Temp. |
-20℃ ~ 60℃ |
|
湿度Relative Humidity |
5% ~ 95%, 非凝结状态Non-condensing |
|
随机振动 Random Vibration |
5~500Hz, 1Grms (HDD)operation |
|
正弦振动 Sine Vibration |
5~500Hz, 2G Non-operation |
|
机械冲击 Shock |
10G @ 11ms operation |
电源 Power
|
电源输入 Power Input |
100~240V(AC) |
|
电源功耗 Power Watt |
250W |
机构 Mechanical
|
外观 Housing |
SGCC |
|
尺寸 Dimension |
481.6(L) x 450.0(W) x 88.6(H)mm |
|
重量 Weight |
10kg( 约) |
|
安装方式 Mounting |
机柜式 (Rack-Mount) |
认证 Certification
|
安规认证 Safety Certification |
CCC |
